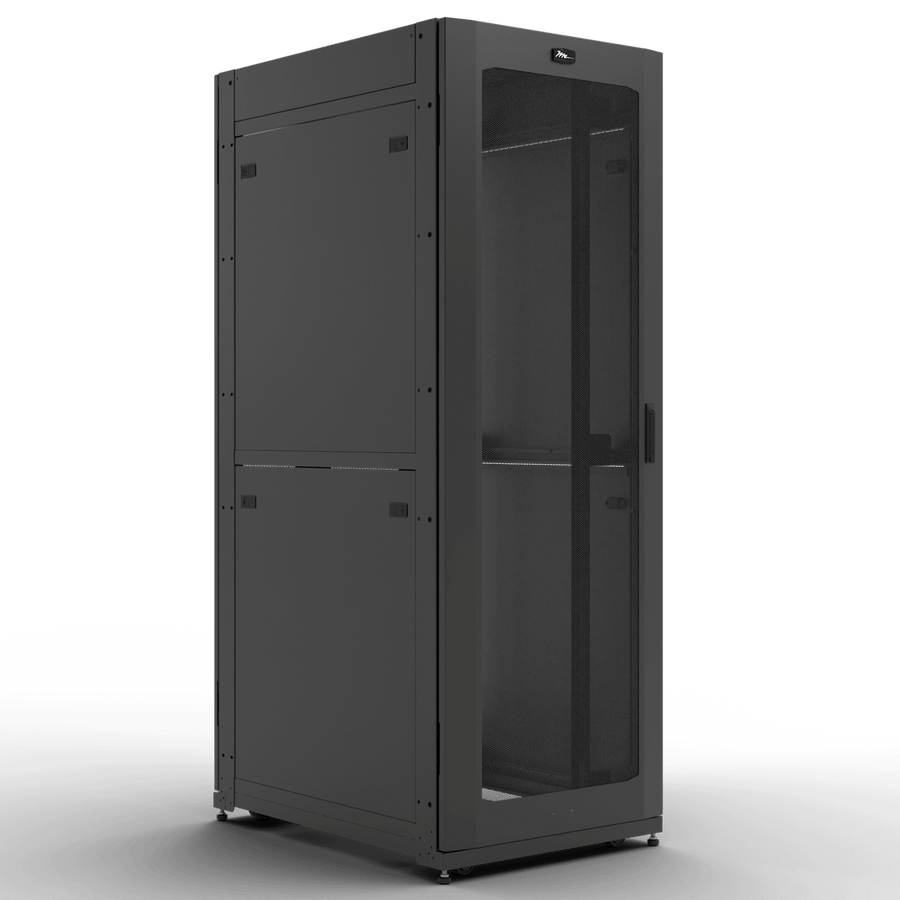

SNE Series Rack SNE30D-4542-P1
Wide 45 RU security network enclosure with 42" depth, seismic rating, and passive front-to-rear ventilation
The SNE30D-4542-P1 is a wide security network enclosure kit designed specifically for digital, IP-based security systems. This pre-configured 45 RU enclosure provides a robust environment for high-density cabling, network equipment, and servers. It features a 30" width and a 42" overall depth, providing 38.48" of usable depth for equipment mounting. The chassis is constructed of steel with a black texture powder coat finish. For thermal management, the unit utilizes passive front-to-rear airflow, supported by a front door with 70% open area ventilation and a rear door with 70% open area ventilation. This model is seismic rated with a seismic load capacity of 1050 lbs (476.3 kg) and holds a UL Load Capacity of 3000 lbs (1,360.8 kg). The enclosure includes a solid top with a brush cable pass-through, split flush mount locking side panels, and 100 6mm cage-nuts and rack screws. It is TAA compliant and manufactured in the USA. This product is scheduled to be discontinued on May 1, 2027; the recommended replacement is the DRK19-44-42PRO.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 42 in (106.7 cm) |
| Height | 84.77 in (215.3 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 45 RU |
| Shipping Weight | 3.57 lbs (1.6 kg) |
| UL Load Capacity | 3000 lbs (1,360.8 kg) |
| Usable Depth | 38.48 in (97.7 cm) |
| Usable Height | 78.75 in (200 cm) |
All other specifications 18
| Width | 30 in (76.2 cm) |
| Airflow Direction | Passive Front to Rear |
| Component Type | Passive |
| Federal Ops Country of Origin | USA |
| Finish | Black Texture Powder Coat |
| Gangable | Yes |
| Material | Steel |
| Product Configuration | Pre-Configured |
| Rack Rail Type | Cage Nut |
| Rack Type | Pre-Configured |
| Rear Door | Yes |
| Seismic Rated | Yes |
| Side Panel | Yes |
| System Type | Digital |
| TAA Compliant | Yes |
| UPC | 656747208515 |
| Certifications | TAAUL Listed |
| Seismic Load Capacity | 1050 lbs (476.3 kg) |
Resources
You'll need these with it
45 RU Vertical Cable Fingers
SNE-IVCMF-45$173.70
Select Series PDT Low Profile Vertical Power Strip with Dual Circuit, 10 Outlet, 20A Hardwired
PDT-2X520$418.50
45 RU SNE Series Vertical Cable Management Duct
SNE-45DUCT-4X6$561.60

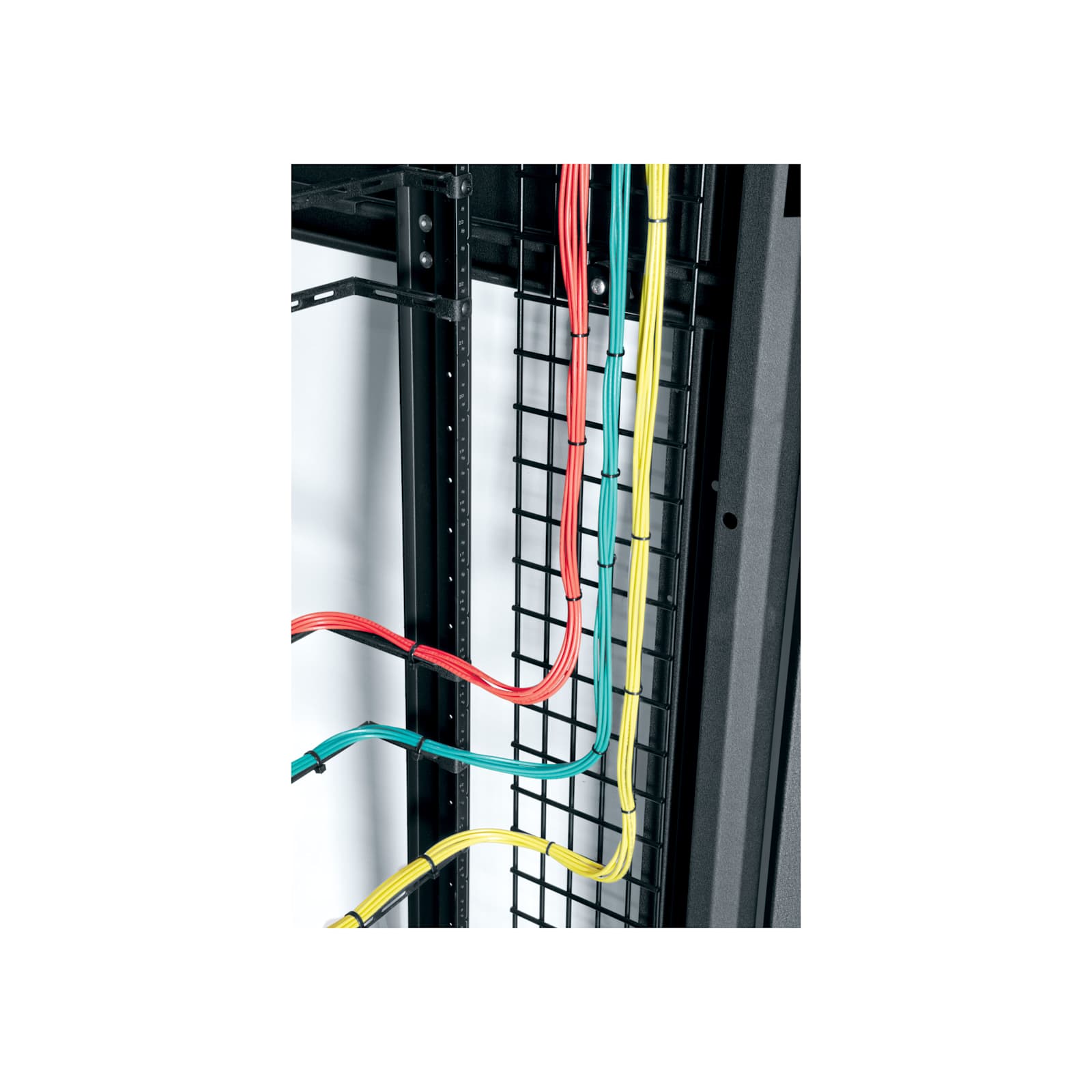

45 RU Wire Grid Lace, 6 Inches Wide
LACE-WB6-45$114.30
45 RU Rackrail 10-32 for 30 Inch Wide SNE Series
SNE30-1032RR45$458.10

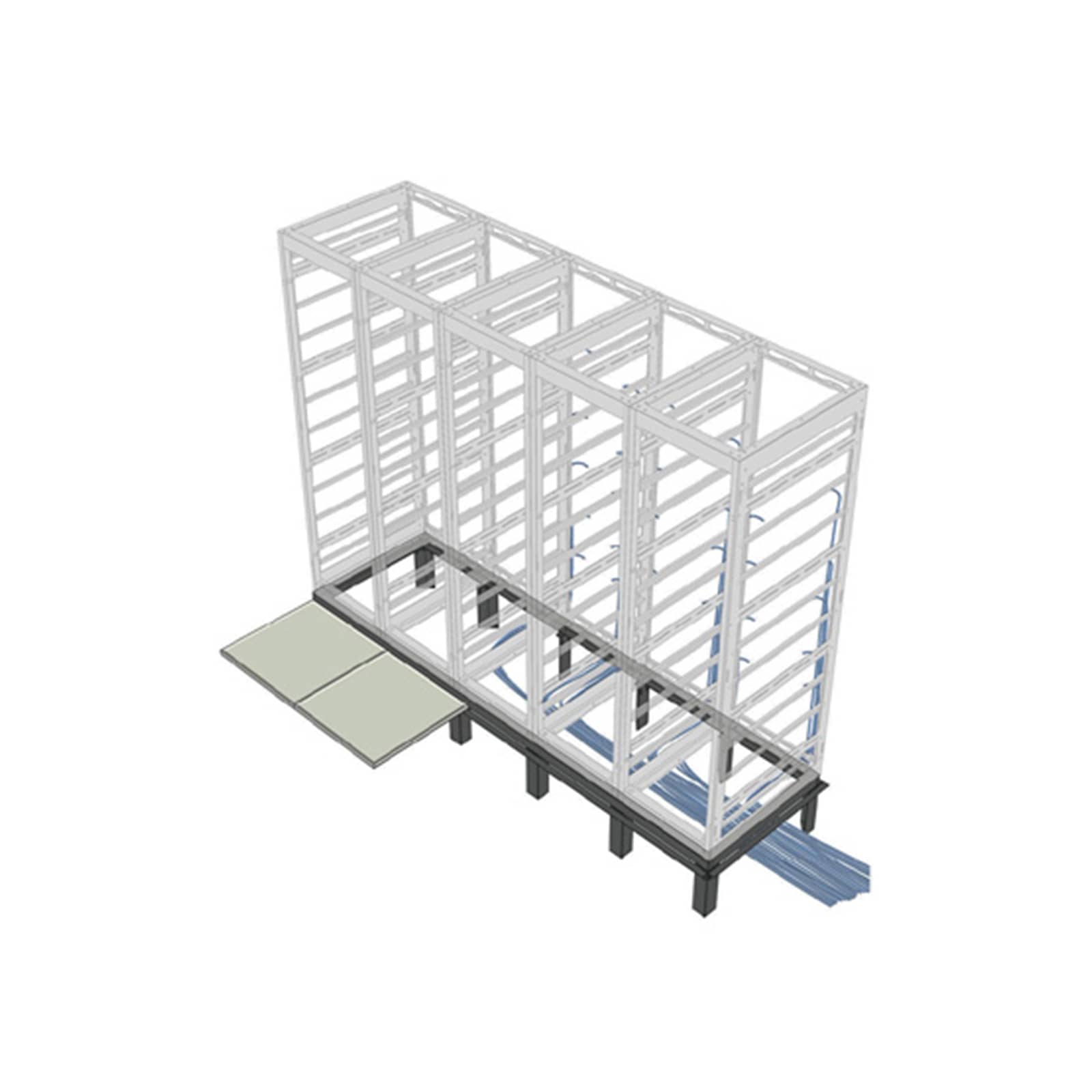

2 Bay Riser Base for 42 Inch Deep for SNE Racks, 30 Inches Wide Racks
RIB-2-SNE30-42$717.30
3 Bay Riser Base for 42 Inch Deep for SNE Racks, 30 Inches Wide Racks
RIB-3-SNE30-42$936.90
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Premium Online Series Replacement Battery Pack, 1500VA UPS & 1500VA Left UPS Expansion Battery
UPS-OLRBP-3$594.00
Questions about this part
What is the compatibility for the SNE30D-4542-P1 with Lever Lock accessories?
This enclosure is Lever Lock™ compatible and accepts all 21" vertical accessories, including the WUSS17-5 Wide Unit Shelf System.
Is the SNE30D-4542-P1 suitable for high-density IP security systems?
Yes, the SNE Series Digital is configured for digital and IP-based security systems that require high-density cabling and space for servers and network equipment.
What is the usable space inside the SNE30D-4542-P1 enclosure?
The unit provides 45 RU of rackspace with a usable height of 78.75" (200 cm) and a usable depth of 38.48" (97.7 cm).
Can I add additional cable management to this rack?
Yes, the SNE30D-4542-P1 is compatible with several accessories, such as the SNE-IVCMF-45 45 RU Vertical Cable Fingers and the SNE-45DUCT-4X6 Vertical Cable Management Duct.
What is the seismic rating of this enclosure?
The SNE30D-4542-P1 is seismic rated with a specific seismic load capacity of 1050 lbs (476.3 kg).
