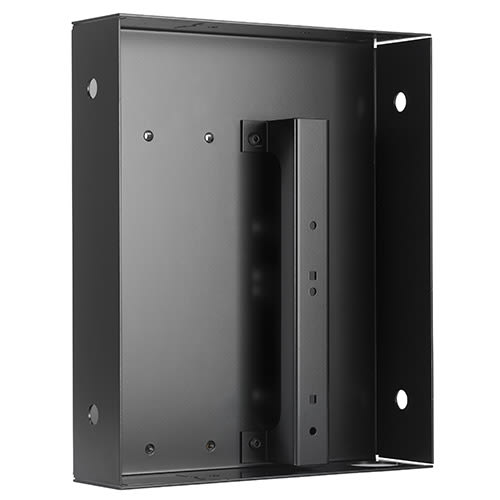

Small Thinstall™ In-Wall Swing Arm Accessory for TS218SU and TS118SU
Small In-Wall swing arm accessory for 35"-47" displays, supporting up to 75 lbs
The Chief TA502 is a small Thinstall In-Wall swing arm accessory specifically engineered to transform an existing thin swing arm into a zero-depth installation. This accessory is designed for use with the TS118SU and TS218SU swing arm models. It is intended for small in-wall back box applications and supports displays within the 35" to 47" (889 to 1194 mm) size range. The unit has a weight capacity of 75 lbs (34 kg) and is TAA compliant. When installing the TS118SU, note that the box height dimension with trim is 18.85"; installers should verify that the display height exceeds this measurement to ensure the in-wall box is completely covered.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.96 in (10.1 cm) |
| Height | 17.2 in (43.7 cm) |
| Overall Dimensions | 17.2" x 14.25" x 3.96" (437mm x 362mm x 101mm) |
| Shipping Weight | 19.8 lbs (9 kg) |
| Typical Screen Size | 35" - 47" (889mm - 1194mm) |
| Weight Capacity | 75 lbs (34 kg) |
| Width | 14.25 in (36.2 cm) |
| Accessory Type | In-Wall |
All other specifications 5
| Application | Small In-Wall Back Box |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872156163 |
| Certifications | TAA |
Resources
Questions about this part
Which swing arms is the TA502 compatible with?
The TA502 is designed for use with Chief TS118SU and TS218SU swing arm models.
What screen sizes will fit this small swing arm accessory?
This accessory is intended for displays with typical screen sizes between 35" and 47" (889 - 1194 mm).
How do I ensure the in-wall box is fully covered during installation?
When using the TS118SU, the box height with trim is 18.85", so ensure your display height is larger than this dimension to achieve full coverage.
What is the weight limit for this in-wall accessory?
The TA502 supports a maximum weight capacity of 75 lbs (34 kg).
Is this TA502 accessory TAA compliant?
Yes, this product is TAA compliant.
