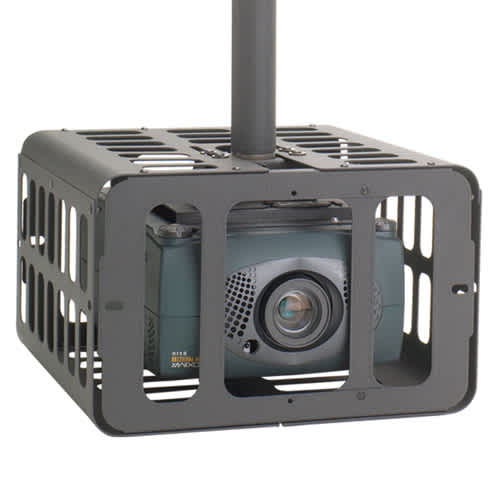

Small Projector Security Cage - PG2A
Locked steel security cage for small projectors, featuring a hinged door and adjustable front opening to maintain projector alignment.
The Chief PG2A provides a high-security solution by fully enclosing a projector mount within a locked steel cage. This enclosure is designed to prevent both theft and recreational damage in public or high-traffic environments. Because the cage features a hinged door and an adjustable front opening, installers can accommodate various lens positions and perform roll, pitch, and yaw adjustments without disturbing existing projector settings. This design allows for quick servicing and maintenance of the unit. The PG2A is directly compatible with RPA and RPM series projector mounts. It can also be attached to 1" and 1.5" NPT diameter poles for use with RSM and RSA projector mounts. For submittal purposes, the PG2AW Installation Manual provides specific guidance on the setup process.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.4 in (41.7 cm) |
| Height | 10.2 in (25.9 cm) |
| Max Equipment Size | 7.5" x 16.0" x 16.0" (191 x 406 x 406 mm) |
| Overall Dimensions | 10.2" x 16.1" x 16.4" (259 x 409 x 417 mm) |
| Shipping Weight | 19.1 lbs (8.7 kg) |
| Width | 16.1 in (40.9 cm) |
| Accessory Type | Cages and Cases |
| Color | Black |
| Projector Size | Small |
| TAA Compliant | Yes |
| UPC | 841872045788 |
| Certifications | TAA |
Resources
Questions about this part
Will the PG2A cage fit my specific projector mount?
The PG2A is designed for direct compatibility with RPA and RPM series mounts. It is also suitable for use with RSA and RSM mounts when attached to 1" or 1.5" NPT diameter poles.
How do I adjust the projector once the cage is installed?
The cage is designed to facilitate ongoing maintenance; it features a hinged door and an adjustable front opening that accommodates roll, pitch, and yaw adjustments without requiring you to reset the projector.
What is the maximum equipment size for this security cage?
This cage accommodates a maximum equipment size of 7.5" x 16.0" x 16.0" (191 x 406 x 406 mm).
Is there a different model for larger projectors?
The PG2A is specifically for small projectors. Other models in the series, such as PG1, PG3, or PG4, are intended for different mount series like VCM or VCT.
Which document should I use for project submittals?
You can refer to the PG2A Technical Drawing (PDF) for dimensional data or the PG2AW Installation Manual (PDF) for mounting instructions.
