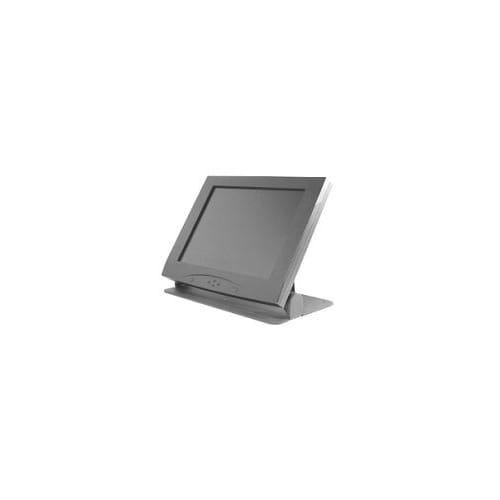

Small Flat Panel Table Stand
Free standing table stand for small displays, supporting VESA 75x75mm and 100x100mm patterns with a 20 lbs capacity
The Chief FSB018BLK is a low-profile table stand designed for small flat panel TVs, LCDs, and monitors. This free standing mount utilizes a low-profile base to maximize available desk space while providing the flexibility needed for diverse environments. It accommodates most 18" VESA 75 x 75 mm and 100 x 100 mm compliant displays. Users can adjust the viewing angle from 0° to +90° to manage data privacy or optimize visibility. For height-sensitive installations, the stand features a 3.25 in (82.6 mm) manual height adjustment within an equipment height range of 8" to 16" (20.32 - 40.64cm). The adjustable friction allows for a custom feel, ensuring stability for touchscreens at any orientation. This TAA compliant solution supports both landscape and portrait orientations for a single display. With a weight capacity of 20 lbs (9.07 kg), it provides a stable, versatile foundation for compact digital signage and monitors.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Equipment Height Range | 8" - 16" (20.32 - 40.64cm) |
| Manual Height Adjustment | 3.25 in (82.6 mm) |
| Shipping Dimensions | 12.5" x 16.5" x 2.5"(317.5 x 419.1 x 63.5 mm) |
| Shipping Weight | 10 lbs (4.5 kg) |
| Weight Capacity | 20 lbs (9.07 kg) |
| Color | Black |
| Mounting Method | Free Standing |
| Number of Displays | 1 |
All other specifications 6
| Orientation | LandscapePortrait |
| Solution Type | Universal |
| TAA Compliant | Yes |
| Tilt | +90° and 0° |
| UPC | 841872020488 |
| Certifications | TAA |
Resources
Verified fitment
Questions about this part
Will the FSB018BLK fit my specific display?
This stand is verified against 1,326 display models from 113 manufacturers. Examples of compatible hardware include Samsung 2243QW, LG 20LA90, Philips 15LCD35, Dell 1908WFP, Panasonic BTLH1710, and Elo 1567L.
What is the maximum weight capacity for this stand?
The FSB018BLK has a weight capacity of 20 lbs (9.07 kg) for a single display.
Can I change the orientation of the monitor?
Yes, this mount supports both landscape and portrait orientations for your display.
How much can I adjust the height of the monitor?
The stand allows for 3.25 in (82.6 mm) of manual height adjustment, with an equipment height range of 8" to 16" (20.32 - 40.64cm).
Which documents are available for submittals?
You can access the FSB018BLK Installation Manual, Technical Drawing, and CAD Drawing (dwg) via the resources section for your installation and submittal needs.
