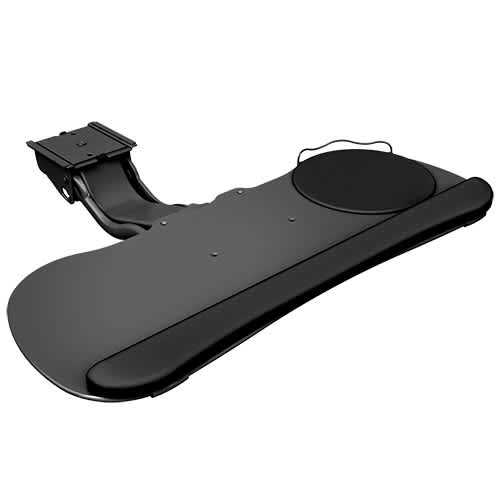

Sit-to-Stand Arm, 27" Keyboard and Mouse Tray
Sit-to-stand keyboard arm with a 27" tray, featuring 12.5" total height adjustment and TAA compliance
The KBD-S2S-27F is a sit-to-stand keyboard and mouse tray designed to enable ergonomic use of fixed-height desks. When paired with Chief’s K1-series dynamic monitor arms, this system allows users to transition between sitting and standing at a single workspace by adjusting the keyboard position. The arm provides a total manual height adjustment range of 12.5" (317 mm), moving the tray +7" (178 mm) above the worksurface or -5.5" (140 mm) below it. The 27" tray features a phenolic surface and a closed-channel design for maximum stability. Users can adjust the tilt from +10° to -20° using a soft-touch wheel, while the rear swivel offers 360° rotation for optimal positioning and easy stowing. Its slim profile is engineered to maximize knee clearance when the tray is in use or retracted.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Manual Height Adjustment | 12.5” (317 mm) total: +7” (178 mm)-5.5” (140 mm) |
| Shipping Weight | 21 lbs (9.5 kg) |
| Accessory Type | Laptop and Keyboard |
| Adjustability | ExtensionHeight AdjustableMicro-AdjustableSwivelTilt |
| Application | Desk-TabletopFurniture |
| Color | Black and Grey with Black Accents |
| Keyboard Arm Type | Sit-to-Stand Arm |
| Keyboard Tray Type | 27" Keyboard & Mouse Tray |
All other specifications 5
| Material | Phenolic surface |
| TAA Compliant | Yes |
| Tilt | +10° / -20° |
| UPC | 841872172675 |
| Certifications | TAA |
Resources
Questions about this part
Will the KBD-S2S-27F work with my existing monitor arm?
This sit-to-stand arm is optimized for use with Chief K1-series dynamic monitor arms to facilitate ergonomic transitions at fixed-height desks.
How do I adjust the height of the keyboard tray?
The arm features manual height adjustment without the need for knobs, levers, or ratchets; simply lift the tray to the desired position and release.
Does this keyboard tray support a mouse?
Yes, the 27" tray is designed to provide ample room for both a keyboard and a mouse.
What is the total height adjustment range of the arm?
The arm offers a total manual height adjustment range of 12.5" (317 mm) to meet different typing heights.
Is the tilt angle adjustable on this model?
The tray includes tilt adjustment from +10° to -20° using a soft-touch wheel.
