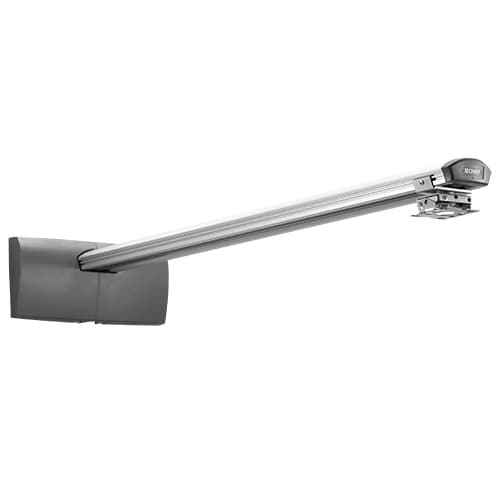

Short Throw & Universal Projector Mount Kit (56 Inch) Ext
Extended short throw projector mount with 56.36" height and up to 55.12" extension for precise placement
The Chief WP23US is an extended short throw projector mount kit designed to provide precise placement and alignment for large projectors. This kit includes the RPA mini universal projector mount (RSAUS) and a short throw arm, providing a complete solution for mounting. The projector can slide along the arm for infinite placement along the 2.38" to 55.12" (6.05 cm - 140.00 cm) extension range. This mount features integrated micro-leveling and a 1.75" (4.4 cm) lateral shift to assist with fine-tuned image positioning once the unit is mounted. It is designed for versatile installation on wood studs, steel studs, concrete, block wall, or brick, and includes hardware for mounting to wood studs and concrete walls. The system also supports wall-mounted long-throw projectors and features an integrated cable management system with inlay-style covers to protect and conceal cabling. This TAA compliant and UL listed solution is built for professional installations requiring high-precision adjustment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 8.62 in (21.9 cm) |
| Extension | 2.38" - 55.12" (6.05cm - 140.00cm) |
| Height | 56.36 in (143.2 cm) |
| Lateral Shift | 1.75 in (4.4 cm) |
| Overall Dimensions | 56.36" x 19.05" x 8.62" (1431.5 x 484 x 219 mm) |
| Shipping Weight | 28.4 lbs (12.9 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Width | 19.05 in (48.4 cm) |
All other specifications 10
| Adjustability | ExtensionMicro-Adjustable |
| Adjustments | Level +4°/-0°Pitch: 20°Roll: 3°Yaw: 360° |
| Application | Wall |
| Color | Silver |
| Interface Type | Projector |
| Projector Size | Large |
| Protective Glass | Manual |
| TAA Compliant | Yes |
| UPC | 841872153957 |
| Certifications | TAAUL Listed |
Resources
Verified fitment
Questions about this part
Will the WP23US fit my short throw projector?
Yes, this kit is verified against 6,627 display models from 112 manufacturers, including Epson BrightLink 1480Fi, Optoma 4K400STx, and Panasonic PT-AE100E.
What is included in the WP23US mount kit?
The kit is a complete solution that includes the WP23US short throw arm and an RPA mini universal projector mount (RSAUS).
Can I mount this to a concrete wall?
Yes, this mount is designed for concrete, block wall, brick, or dual wood/steel studs and includes hardware for concrete and wood stud mounting.
How much weight can the WP23US support?
This mount has a weight capacity of 25 lbs (11.3 kg).
What is the difference between the WP23US and other WP2 series mounts?
The WP23US is the 56-inch extended version of the series, offering a much larger extension range than the 24-inch or 40-inch variants.
