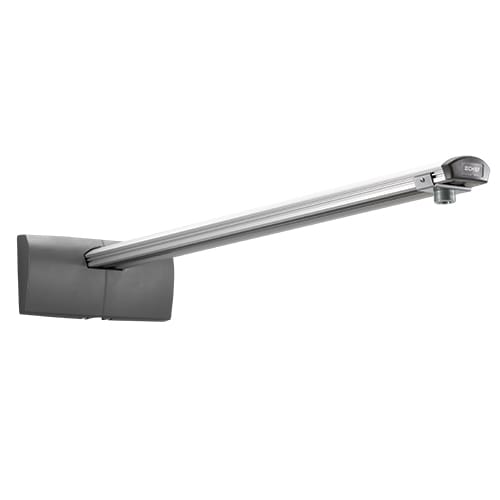

Short Throw Mount (56 Inch) Ext
Short throw projector mount extension with 56.36 in height and a 2.38" to 55.12" extension range
The Chief WP23S provides the necessary extension and positioning for large short throw projectors. This extension arm reaches a height of 56.36 in (143.2 cm) and offers an adjustable extension range of 2.38" to 55.12" (6.05 cm - 140.00 cm). Designed for precise alignment, the arm allows the projector to slide for infinite placement along its length. It features integrated micro-leveling to adjust up to +4°/-0° and provides a 1.75 in (4.4 cm) lateral shift. This arm includes a 1.5" NPS collar, making it compatible with RPA, Elite, RPA Mini, and Elite Mini Series projector mounts. For a clean installation, it utilizes an inlay-style cable management system with aesthetic covers to protect and conceal wiring. This TAA-compliant and UL Listed component is designed for mounting to wood studs, steel studs, concrete, brick, or block walls.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 8.62 in (21.9 cm) |
| Extension | 2.38" - 55.12" (6.05cm - 140.00cm) |
| Height | 56.36 in (143.2 cm) |
| Lateral Shift | 1.75 in (4.4 cm) |
| Overall Dimensions | 56.36" x 19.05" x 8.62" (1431.5 x 484 x 219 mm) |
| Shipping Weight | 26.85 lbs (12.2 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Width | 19.05 in (48.4 cm) |
All other specifications 9
| Adjustability | ExtensionMicro-Adjustable |
| Adjustments | Level +4°/-0° |
| Application | Wall |
| Color | Silver |
| Projector Size | Large |
| Protective Glass | No |
| TAA Compliant | Yes |
| UPC | 841872153940 |
| Certifications | TAAUL Listed |
Resources
Questions about this part
Will the WP23S work with my existing Chief projector mount?
The WP23S is compatible with RPA, Elite, RPA Mini, and Elite Mini Series mounts via its 1.5" NPS collar.
Do I need to purchase a projector mount separately for the WP23S?
Yes, the WP23S is the extension arm only; the actual projector mount must be ordered separately.
What kind of wall surfaces can this mount be installed on?
This extension is designed for installation on wood studs, steel studs, concrete, brick, or block walls.
How much weight can the WP23S extension support?
The WP23S has a weight capacity of 25 lbs (11.3 kg).
How is the projector position adjusted once the arm is installed?
The projector slides along the arm for infinite placement, and integrated micro-leveling allows for +4°/-0° adjustment.
