RPA Universal Projector Kit (RPMAU, CMS009012, CMA101)
Universal ceiling projector kit with a 9"–12" adjustable extension column and micro-adjustable mounting head

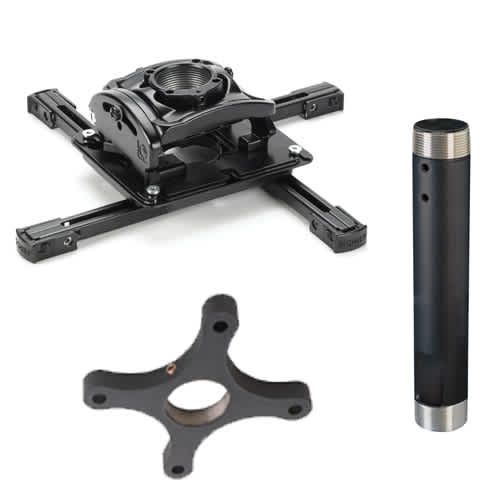

The KITEF009012 is a preconfigured Chief RPA Universal Ceiling Projector Mount Kit designed to simplify procurement and installation for suspended ceiling environments. This comprehensive package contains the RPMAU projector mount, the CMS009012 adjustable extension column, and the CMA101 designer ceiling plate. The included CMS009012 column provides an adjustable height range of 9" to 12" (22.86cm – 30.48cm), allowing for precise positioning between the ceiling and the projector. This kit is built for professional installers requiring a coordinated solution, featuring a black finish across the mount, column, and ceiling plate. The system supports a weight capacity of 50 lbs (22.7 kg) and offers micro-adjustable, independent roll, pitch, and yaw to ensure the projector is perfectly aligned after installation. This TAA compliant kit provides a single-package solution for most standard suspended ceiling applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Column Length | 9" - 12" (23cm-30.5 cm) |
| Extension | 9" - 12" (22.86cm - 30.48cm) |
| Shipping Dimensions | 17.25" x 11.5" x 8"(438.2 x 292.1 x 203.2 mm) |
| Shipping Weight | 10.9 lbs (4.9 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Ceiling Plate Type | Designer |
All other specifications 10
| Color | Black |
| Column Color | Black |
| Column Type | Adjustable |
| Keyed Locking | Yes |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | Yes |
| UPC | 841872116099 |
| Ceiling Plate Color | Black |
| Certifications | TAA |
Resources
Questions about this part
What is included in the KITEF009012 kit?
This kit is preconfigured with the RPMAU projector mount, the CMS009012 9"–12" adjustable extension column, and the CMA101 ceiling plate.
Can I adjust the projector position once it is mounted?
Yes, the mount features micro-adjustable, independent roll, pitch, and yaw to allow for precise alignment after the installation is complete.
What is the maximum weight this projector mount can hold?
The system has a weight capacity of 50 lbs (22.7 kg).
Is this projector mount suitable for suspended ceilings?
Yes, the CMA101 designer ceiling plate is included to support most suspended ceiling installations.
Which documents are available for submittals?
You can access the RPM Installation Manual, the CMA101 Installation Manual, and technical drawings for all included components in the Resources tab.
