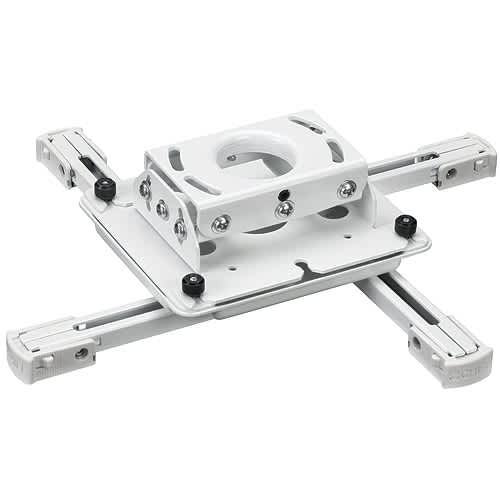

RPA Universal Projector Kit (RPAUW, CMS0305W, CMS115W)
White universal ceiling projector mount kit with 3' to 5' adjustable extension column and Speed-Connect ceiling plate
The Chief KITPD0305W is a preconfigured solution designed to simplify both the ordering and installation processes for ceiling-mounted projector setups. This white universal kit includes the RPAUW Universal Projector Mount, a CMS0305W 3' to 5' (0.9m to 1.53m) extension column, and a CMS115W Speed-Connect ceiling plate. The adjustable extension column allows for a height range of 36" to 60" (91.44cm - 152.40cm), providing necessary clearance for various ceiling heights. The mount features independent roll, pitch, and yaw adjustability to ensure precise projector positioning once installed. This TAA compliant kit has a total weight capacity of 50 lbs (22.7 kg). The Speed-Connect ceiling plate simplifies the initial mounting phase, making it an efficient choice for professional installers managing multiple projector installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Column Length | 3' - 5' (0.9m to 1.53m) |
| Extension | 36" - 60" (91.44cm - 152.40cm) |
| Shipping Dimensions | 45" x 15.75" x 9.5" (114.3 x 40 x 24.1 cm) |
| Shipping Weight | 19.35 lbs (8.8 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Ceiling Plate Type | Speed-Connect |
All other specifications 10
| Color | White |
| Column Color | White |
| Column Type | Adjustable |
| Keyed Locking | No |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | Yes |
| UPC | 841872118864 |
| Ceiling Plate Color | White |
| Certifications | TAA |
Resources
Questions about this part
What is included in the Chief KITPD0305W projector kit?
This kit includes the RPAUW Universal Projector Mount, the CMS0305W 3' to 5' extension column, and the CMS115W ceiling plate.
Can I adjust the projector's angle after installation?
Yes, the mount provides independent roll, pitch, and yaw adjustability to help you fine-tune the projector's orientation.
What is the maximum weight capacity for this mount kit?
The KITPD0305W has a maximum weight capacity of 50 lbs (22.7 kg).
Is this mount suitable for TAA compliance requirements?
Yes, this kit is TAA compliant, making it suitable for specific government and regulated projects.
How much height adjustment does the column provide?
The CMS0305W extension column allows for a height range of 36" to 60" (91.44cm to 152.40cm).
