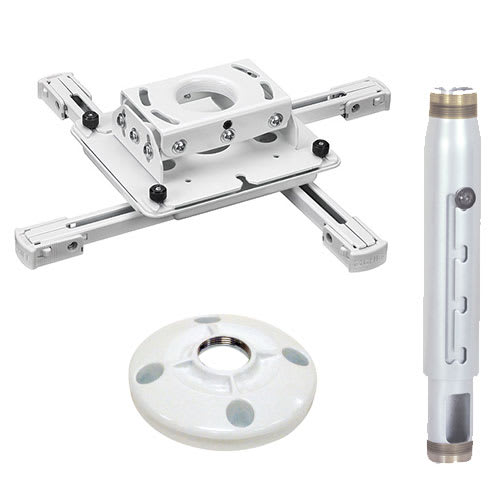

RPA Universal Projector Kit (RPAUW, CMS012018W, CMS115W)
White universal projector ceiling mount kit with a 12" - 18" adjustable extension column and Speed-Connect ceiling plate
The Chief KITPD012018W is a preconfigured, white universal projector mount kit designed to simplify the ordering and installation process for professional integrators. This specialized solution includes the RPAUW Universal Projector Mount, the CMS012018W adjustable extension column, and the CMS115W ceiling plate. The kit features a Speed-Connect ceiling plate for efficient mounting and an adjustable column that provides an extension range of 12" - 18" (30.5cm - 45.7cm). For precise projection placement, the mount provides independent roll-pitch-yaw adjustability. This TAA compliant kit supports a total weight capacity of 50 lbs (22.7 kg) and is intended for ceiling applications. This all-white configuration ensures a clean, professional aesthetic for any installation environment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Column Length | 12" - 18" (30.5cm - 45.7cm) |
| Extension | 12" - 18" (30.48cm - 45.72cm) |
| Shipping Dimensions | 20" x 14.13" x 6.5"(508 x 359 x 165.1 mm) |
| Shipping Weight | 10.65 lbs (4.8 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Ceiling Plate Type | Speed-Connect |
All other specifications 10
| Color | White |
| Column Color | White |
| Column Type | Adjustable |
| Keyed Locking | No |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | Yes |
| UPC | 841872118840 |
| Ceiling Plate Color | White |
| Certifications | TAA |
Resources
Questions about this part
What is included in this projector mount kit?
This kit includes the RPAUW Universal Projector Mount, the CMS012018W 12" - 18" extension column, and the CMS115W ceiling plate.
How much weight can the KITPD012018W support?
The kit is rated for a total weight capacity of 50 lbs (22.7 kg).
Can I adjust the angle of the projector once it is mounted?
Yes, the mount features independent roll-pitch-yaw adjustability to help you achieve the correct projection angle.
What is the extension range of the column in this kit?
The CMS012018W column provides an extension range of 12" - 18" (30.5cm - 45.7cm).
Is this kit TAA compliant?
Yes, the KITPD012018W is TAA compliant.
