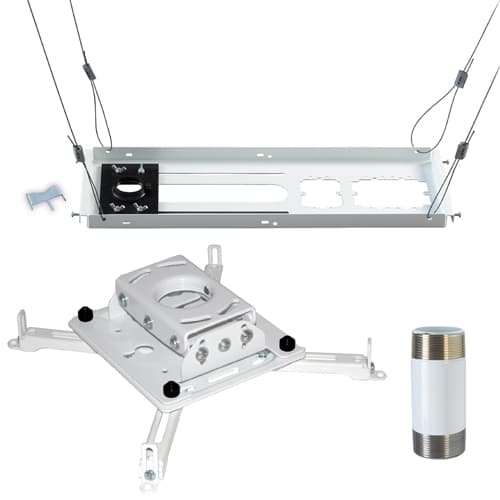

RPA Universal Projector Kit (RPAUW, CMS006W, CMS440)
White universal projector kit for suspended ceilings with a 6" extension column and 50 lbs capacity
The Chief KITPS006W is a preconfigured, all-in-one solution designed to simplify the procurement and installation of projector mounts in suspended ceiling environments. This white-finish kit streamlines the ordering process by grouping the essential components required for a professional above-tile installation into a single package. It includes the RPAUW Universal Projector Mount, which provides independent roll, pitch, and yaw adjustability for precise projector positioning. The kit features a 6" (15.2 cm) fixed-length CMS006W extension column and the CMS440 lightweight suspended ceiling kit. This assembly is specifically engineered for use with 2' x 2" (60.33 x 60.33 mm) or 2' x 4" (60.33 x 121.92 mm) ceiling tiles. With a weight capacity of 50 lbs (22.7 kg), this TAA compliant kit provides a reliable, unified mounting solution for most standard suspended ceiling configurations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm)2' x 4' (60.33 x 121.92 cm) |
| Column Length | 6 in (15.2 cm) |
| Shipping Dimensions | 28.25" x 12.5" x 6.5"(717.6 x 317.5 x 165.1 mm) |
| Shipping Weight | 16 lbs (7.3 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | White |
All other specifications 9
| Column Color | White |
| Column Type | Fixed |
| Installation Type | Above Tile |
| Keyed Locking | No |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | Yes |
| UPC | 841872155043 |
| Certifications | TAA |
Resources
Questions about this part
What is included in the Chief KITPS006W projector kit?
This kit contains the RPAUW Universal Projector Mount, the CMS006W 6" (15.2 cm) fixed extension column, and the CMS440 lightweight suspended ceiling kit.
Will this kit fit my suspended ceiling tiles?
Yes, the CMS440 kit is designed for use in suspended ceilings with either 2' x 2" (60.33 x 60.33 cm) or 2' x 4" (60.33 x 121.92 cm) tiles.
What is the weight capacity of the KITPS006W?
The kit supports a maximum weight capacity of 50 lbs (22.7 kg) for the projector assembly.
How much adjustability does the mount offer?
The RPAUW mount included in this kit provides independent roll, pitch, and yaw adjustments to ensure the projector is correctly aligned.
Is this kit TAA compliant?
Yes, the KITPS006W is TAA compliant.
