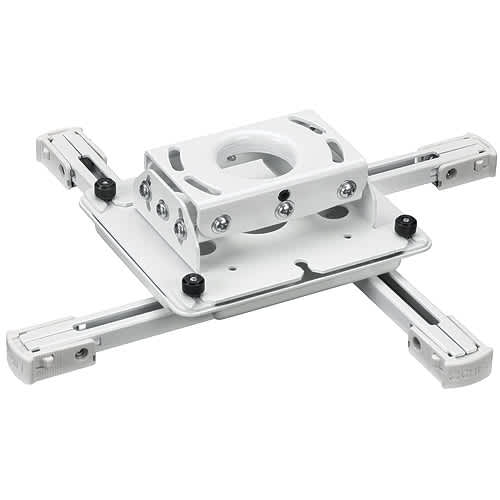

RPA Universal Projector Kit (RPAUW, CMS003W, CMS440)
White universal projector kit for suspended ceilings, featuring a 3" extension column and 50 lbs capacity
The Chief KITPS003W is a preconfigured projector mounting solution designed to simplify both procurement and installation in suspended ceiling environments. This white-finish kit provides a complete assembly by combining the RPAUW Universal Projector Ceiling Mount with a CMS003W 3" (76 mm) fixed extension column and the CMS440W Lightweight Suspended Ceiling Kit. This configuration is specifically engineered to support most standard suspended ceiling installations within a single package, streamlining the job site workflow. The kit is TAA compliant and supports a weight capacity of 50 lbs (22.7 kg). For precise placement and alignment, the RPAUW mount provides independent roll-pitch-yaw adjustability. This assembly is designed for above-tile installation, utilizing a fixed 3" (7.6 cm) column to provide necessary clearance from the ceiling plane.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm)2' x 4' (60.33 x 121.92 cm) |
| Column Length | 3 in (7.6 cm) |
| Extension | 3 in (7.6 cm) |
| Shipping Dimensions | 28" x 12.5" x 6.5"(711.2 x 317.5 x 165.1 mm) |
| Shipping Weight | 15.14 lbs (6.9 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
All other specifications 10
| Color | White |
| Column Color | White |
| Column Type | Fixed |
| Installation Type | Above Tile |
| Keyed Locking | No |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | Yes |
| UPC | 841872118871 |
| Certifications | TAA |
Resources
Questions about this part
What is included in the Chief KITPS003W projector kit?
This package includes the RPAUW Universal Projector Mount, a CMS003W 3" (76 mm) extension column, and the CMS440W Lightweight Suspended Ceiling Kit.
Can I use this kit with 2x2 or 2x4 ceiling tiles?
Yes, this kit is designed for above-tile installation in suspended ceilings using either 2' x 2' (60.33 x 60.33 cm) or 2' x 4' (60.33 x 121.92 cm) tiles.
What is the weight limit for the KITPS003W?
The kit has a total weight capacity of 50 lbs (22.7 kg) for the mounted projector.
How much adjustability does the mount provide?
The RPAUW mount included in this kit offers independent roll, pitch, and yaw adjustments to ensure proper image alignment.
Is this kit TAA compliant?
Yes, the KITPS003W is TAA compliant.
