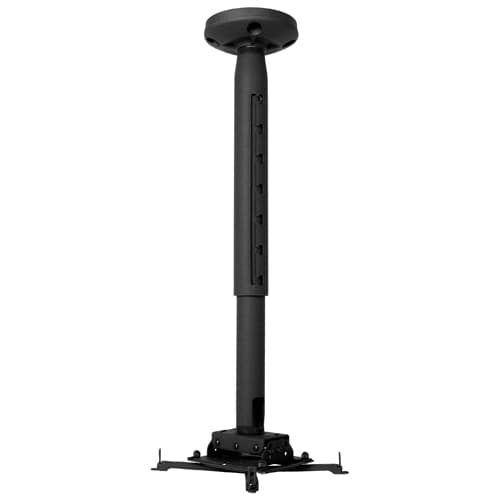

RPA Universal Projector Kit (RPAU, CMS0203, CMS115)
Universal ceiling projector mount kit with an adjustable 2' - 3' column and Speed-Connect ceiling plate
The Chief KITPD0203 is a preconfigured solution designed to simplify the ordering and installation of ceiling-mounted projector systems. This universal kit bundles three essential components: the RPA Universal Projector Mount (RPAU), a CMS0203 12" - 18" (305 - 457 mm) extension column, and a CMS115 Speed-Connect ceiling plate. The system features a black finish across the column and ceiling plate for a consistent look. The included CMS0203 column provides an adjustable length between 2' - 3" (0.61m - 0.92m), allowing installers to set the precise height required for the specific room's geometry. For projectors requiring fine-tuned alignment, the RPAU provides independent roll, pitch, and yaw adjustability. This TAA compliant kit supports a maximum weight capacity of 50 lbs (22.7 kg) and is intended for ceiling applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Column Length | 2' - 3' (0.61m - 0.92m) |
| Extension | 24" - 36" (60.96cm - 91.44cm) |
| Shipping Dimensions | 31.25" x 16.75" x 5" (793.8 x 425.5 x 127 mm) |
| Shipping Weight | 14.64 lbs (6.6 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Ceiling Plate Type | Speed-Connect |
All other specifications 10
| Color | Black |
| Column Color | Black |
| Column Type | Adjustable |
| Keyed Locking | No |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | Yes |
| UPC | 841872109381 |
| Ceiling Plate Color | Black |
| Certifications | TAA |
Resources
Questions about this part
What is included in the KITPD0203 projector kit?
This kit contains one RPAU Universal Projector Mount, one CMS0203 12"-18" (305-457 mm) extension column, and one CMS115 Speed-Connect ceiling plate.
How much weight can the RPA Universal Projector Mount handle?
The mount assembly supports a maximum weight capacity of 50 lbs (22.7 kg).
Can I adjust the height and orientation of the projector?
Yes, the kit includes a CMS0203 column with an adjustable length of 2' - 3" (0.61m - 0.92m) and provides independent roll, pitch, and yaw adjustability.
Is this projector mount TAA compliant?
Yes, the KITPD0203 is TAA compliant.
What kind of ceiling plate is used with this kit?
The kit uses a CMS115 Speed-Connect ceiling plate for installation.
