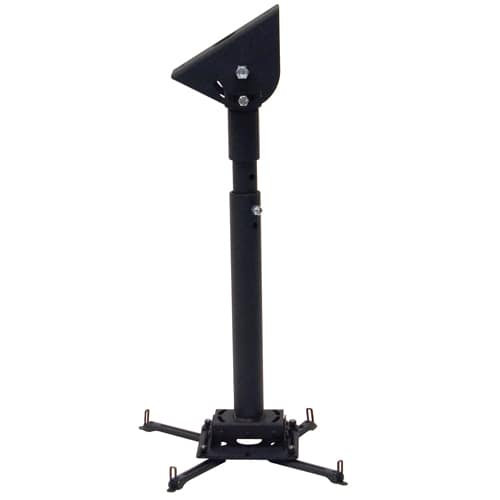

RPA Universal Projector Kit (RPAU, CMS018024, CMA395)
Universal ceiling projector kit with 18-24" extension column and angled ceiling plate for angled ceiling installations
The Chief KITPA018024 is a preconfigured RPA Universal Projector Mount Kit designed to simplify both ordering and on-site installation for complex ceiling environments. This TAA compliant solution is specifically engineered to support most angled ceiling installations within a single package. The kit contains three essential components: the RPAU Universal Projector Mount, the CMS018024 adjustable extension column, and the CMA395 angled ceiling plate. The extension column provides a versatile 18" to 24" (457mm to 610mm) length to achieve the necessary projection distance. For precise alignment, the RPAU mount offers independent roll, pitch, and yaw adjustability. This all-black kit provides a professional aesthetic for ceiling-mounted projector applications with a weight capacity of 50 lbs (22.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Column Length | 18" - 24" (457mm-610mm) |
| Extension | 18" - 24" (45.72cm - 60.96cm) |
| Shipping Dimensions | 28" x 13" x 7.75"(711.2 x 330.2 x 196.9 mm) |
| Shipping Weight | 16.95 lbs (7.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Ceiling Plate Type | Angled |
All other specifications 10
| Color | Black |
| Column Color | Black |
| Column Type | Adjustable |
| Keyed Locking | No |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | Yes |
| UPC | 841872094090 |
| Ceiling Plate Color | Black |
| Certifications | TAA |
Resources
Questions about this part
What is included in the Chief KITPA018024 kit?
This kit contains the RPAU Universal Projector Mount, the CMS018024 18-24" (457-610 mm) extension column, and the CMA395 Angled Ceiling Plate.
Will this mount work on a sloped or angled ceiling?
Yes, this kit is specifically configured with the CMA395 angled ceiling plate to support most angled ceiling installations.
How much weight can this projector mount hold?
The kit has a total weight capacity of 50 lbs (22.7 kg).
What are the adjustment capabilities for the projector alignment?
The RPAU mount features independent roll, pitch, and yaw adjustability to allow for precise positioning after installation.
Is this kit TAA compliant?
Yes, the KITPA018024 is TAA compliant.
