RPA Universal Projector Kit (RPAU, CMS012018, CMS440)
Universal projector mount kit for suspended ceilings, 50 lbs capacity, including RPAU mount and 12"–18" extension column

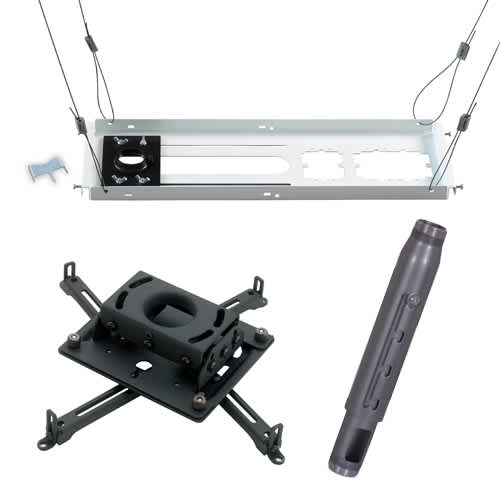

The Chief KITPS012018 is a preconfigured universal projector kit designed to simplify the ordering and installation process for suspended ceiling environments. This comprehensive solution is built for fixed ceiling installations, providing all the necessary components in a single package to ensure system compatibility. The kit includes the RPAU universal projector mount, the CMS012018 extension column, and the CMS440 lightweight suspended ceiling kit. The adjustable column provides an extension range of 12" to 18" (30.48cm - 45.72cm) to achieve the precise height required for the specific installation site. For installers working with standard grid layouts, this kit is compatible with both 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tiles. This TAA compliant assembly supports a maximum weight capacity of 50 lbs (22.7 kg) and provides independent roll, pitch, and yaw adjustability to ensure the projector is perfectly aligned with the screen once mounted.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm)2' x 4' (60.33 x 121.92 cm) |
| Column Length | 12" - 18" (30.5cm - 45.7cm) |
| Extension | 12" - 18" (30.48cm - 45.72cm) |
| Shipping Dimensions | 28.25" x 12.75" x 7"(717.6 x 323.9 x 177.8 mm) |
| Shipping Weight | 17.65 lbs (8 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
All other specifications 10
| Color | Black |
| Column Color | Black |
| Column Type | Adjustable |
| Installation Type | Above Tile |
| Keyed Locking | No |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | Yes |
| UPC | 841872116082 |
| Certifications | TAA |
Resources
Questions about this part
Will the KITPS012018 fit my suspended ceiling?
Yes, this kit is designed for installation above tile in ceilings using 2' x 2' (60.33 x 60.33 cm) or 2' x 4' (60.33 x 121.92 cm) tiles.
What is the maximum weight my projector can be?
The kit is rated for a maximum weight capacity of 50 lbs (22.7 kg).
How much height adjustment does the column provide?
The CMS012018 extension column provides an adjustable length between 12" and 18" (30.48cm - 45.72cm).
Can I adjust the projector angle after it is mounted?
Yes, the RPAU mount allows for independent roll, pitch, and yaw adjustment to ensure correct projection alignment.
Is this kit TAA compliant for submittals?
Yes, the KITPS012018 is TAA compliant for use in projects requiring these standards.
