RPA Universal Projector Kit (RPAU, CMS012, CMS440, CMA170)
Universal projector ceiling mount kit featuring 12 in (30.5 cm) extension and above-tile equipment storage for 2' x 2' or 2' x 4' tiles

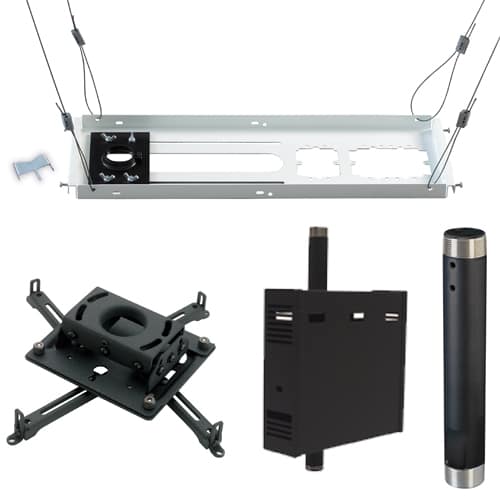

The Chief KITPS012C is a preconfigured universal projector kit designed to simplify the procurement and installation process for suspended ceiling environments. This solution is engineered to support most suspended ceiling installations within a single package. It includes the RPAU Universal Projector Mount, a CMS012 12 in (30.5 cm) extension column, the CMS440 Suspended Ceiling Kit, and the CMA170 Above-Tile Storage Accessory. This combination allows installers to provide a complete mounting solution while offering convenient storage above the ceiling for equipment and non-plenum rated cables. The kit features a black finish for both the mount and the column. For positioning the projector, the mount provides independent roll, pitch, and yaw adjustability. This TAA compliant kit is specifically designed for ceiling applications where a 12 in (30.5 cm) extension is required to achieve the desired projection height from the tile line.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm)2' x 4' (60.33 x 121.92 cm) |
| Column Length | 12 in (30.5 cm) |
| Extension | 12 in (30.5 cm) |
| Shipping Dimensions | 30" x 24.25" x 12.5" (762 x 616 x 317.5 mm) |
| Shipping Weight | 40.75 lbs (18.5 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
All other specifications 10
| Color | Black |
| Column Color | Black |
| Column Type | Fixed |
| Installation Type | Above Tile |
| Keyed Locking | No |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | Yes |
| UPC | 841872109343 |
| Certifications | TAA |
Questions about this part
What ceiling tile sizes does the KITPS012C support?
This kit is designed for use with both 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tiles.
What is included in the KITPS012C projector kit?
This kit is a preconfigured package containing the RPAU Universal Projector Mount, CMS012 12 in (30.5 cm) extension column, CMS440 Suspended Ceiling Kit, and the CMA170 Above-Tile Storage Accessory.
How much weight can the mount support?
The kit has a total weight capacity of 50 lbs (22.7 kg) for the projector mount installation.
Can I adjust the projector position once it is mounted?
Yes, the mount provides independent roll, pitch, and yaw adjustability to help you fine-tune the projection angle.
What is the purpose of the CMA170 accessory in this kit?
The CMA170 is an above-tile storage accessory used to hold non-plenum rated cables and equipment within the suspended ceiling space.
