RPA Universal Projector Kit (RPAU, CMS006, CMS440)
Universal projector kit for suspended ceilings, including an RPAU mount, 6" extension column, and CMS440 kit with 50 lbs capacity

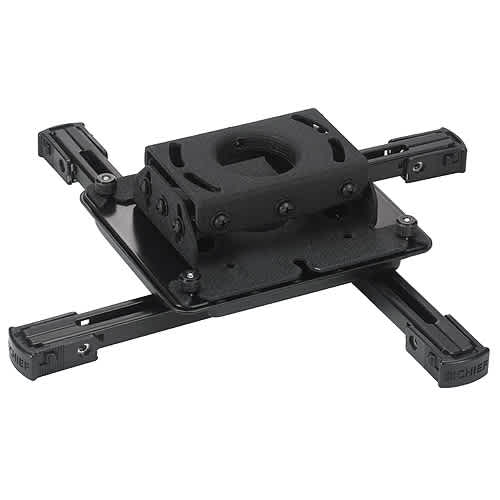

The Chief KITPS006 is a preconfigured projector ceiling mount kit designed to simplify the ordering and installation process for suspended ceiling environments. This universal solution integrates three essential components: the RPAU Universal Projector Ceiling Mount, a CMS006 fixed extension column measuring 6 in (15.2 cm) in length, and the CMS440 Lightweight Suspended Ceiling Kit. By combining these components into a single package, the kit supports most suspended ceiling installations, including those utilizing 2' x 2' (60.33 x 60.33 cm) or 2' x 4' (60.33 x 121.92 cm) ceiling tiles. The RPAU mount provides independent roll, pitch, and yaw adjustability, allowing for precise projector positioning once installed above the tile. This TAA compliant kit has a total weight capacity of 50 lbs (22.7 kg), making it a versatile choice for professional AV integrations in classrooms, conference rooms, and lecture halls.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm)2' x 4' (60.33 x 121.92 cm) |
| Column Length | 6 in (15.2 cm) |
| Shipping Dimensions | 28.25" x 12.5" x 6.5"(717.6 x 317.5 x 165.1 mm) |
| Shipping Weight | 16 lbs (7.3 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black Silver and White |
All other specifications 9
| Column Color | Black |
| Column Type | Fixed |
| Installation Type | Above Tile |
| Keyed Locking | No |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | Yes |
| UPC | 841872172019 |
| Certifications | TAA |
Resources
Questions about this part
What is included in the Chief KITPS006 kit?
This package includes the RPAU Universal Projector Ceiling Mount, a 6 in (15.2 cm) CMS006 fixed extension column, and the CMS440 Lightweight Suspended Ceiling Kit.
Will this kit work with my suspended ceiling tiles?
Yes, the included CMS440 kit is designed for use with both 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tiles.
How much weight can the KITPS006 support?
The total weight capacity for this projector kit is 50 lbs (22.7 kg).
Does the KITPS006 allow for projector adjustment after installation?
Yes, the RPAU mount included in this kit features independent roll, pitch, and yaw adjustability to assist with final projector alignment.
Is this kit TAA compliant?
Yes, the KITPS006 is TAA compliant.
