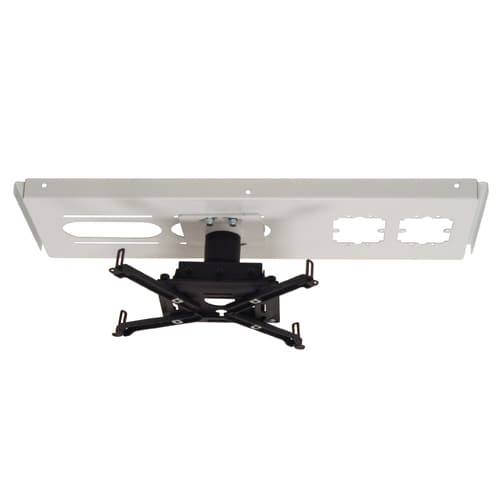

RPA Universal Projector Kit (RPAU, CMS003, CMS440)
Universal projector mount kit for suspended ceiling installations, includes RPAU mount, CMS003 extension column, and CMS440 ceiling kit
The Chief KITPS003 is a preconfigured solution designed to streamline the ordering and installation process for suspended ceiling projector mounts. This universal kit includes the RPAU Universal Projector Ceiling Mount, a 3 in (7.6 cm) CMS003 fixed extension column, and the CMS440 Lightweight Suspended Ceiling Kit. It is engineered to support most suspended ceiling installations within a single package, reducing the need to source individual components separately. The kit is TAA compliant and carries a 50 lbs (22.7 kg) weight capacity. For precise alignment, the RPAU mount provides independent roll, pitch, and yaw adjustability. This kit is specifically designed for above-tile installation in 2' x 2' (60.33 x 60.33 cm) or 2' x 4' (60.33 x 121.92 cm) ceiling tiles.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm)2' x 4' (60.33 x 121.92 cm) |
| Column Length | 3 in (7.6 cm) |
| Extension | 3 in (7.6 cm) |
| Shipping Dimensions | 28" x 12.5" x 6.5"(711.2 x 317.5 x 165.1 mm) |
| Shipping Weight | 15.14 lbs (6.9 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
All other specifications 10
| Color | Black |
| Column Color | Black |
| Column Type | Fixed |
| Installation Type | Above Tile |
| Keyed Locking | No |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | Yes |
| UPC | 841872094083 |
| Certifications | TAA |
Resources
Questions about this part
What is included in the Chief KITPS003 kit?
This kit contains the RPAU Universal Projector Ceiling Mount, a CMS003 3 in (7.6 cm) fixed extension column, and a CMS440 Lightweight Suspended Ceiling Kit.
Will this kit work with my suspended ceiling?
The CMS440 kit is designed to support installations in 2' x 2' (60.33 x 60.33 cm) or 2' x 4' (60.33 x 121.92 cm) ceiling tiles.
How much weight can this projector mount support?
The KITPS003 has a total weight capacity of 50 lbs (22.7 kg).
Can I adjust the projector position once it is mounted?
Yes, the RPAU mount included in the kit features independent roll, pitch, and yaw adjustability to help you achieve the correct image alignment.
Is the Chief KITPS003 TAA compliant?
Yes, this projector mounting kit is TAA compliant.
