RPA Universal Projector Kit (RPAU, CMA455, CMS003)
Universal projector kit for 2' x 2' suspended ceilings, 50 lbs capacity, with independent roll, pitch, and yaw adjustability

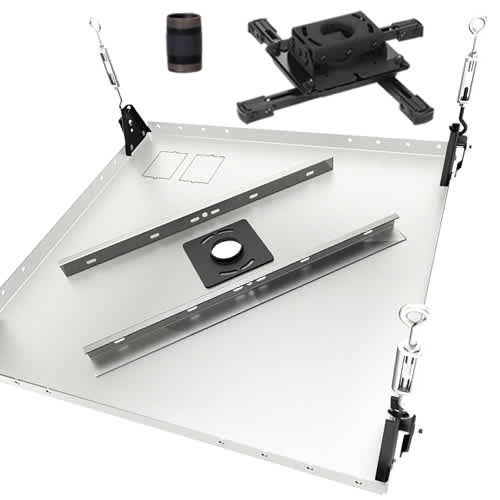

The Chief KITPB003 is a preconfigured solution designed to simplify the ordering and installation process for ceiling-mounted projector systems. This universal kit is specifically engineered for replacement installations in suspended ceilings and includes three essential components: an RPAU projector mount, a CMA455 mount adapter, and a CMS003 3 in (7.6 cm) fixed-length extension column. Designed to integrate into 2' x 2' (60.33 x 60.33 cm) ceiling tiles, this kit provides a professional mounting solution with a total weight capacity of 50 lbs (22.7 kg). The included RPAU mount offers independent roll, pitch, and yaw adjustability, allowing installers to fine-tune the projector's orientation once it is mounted. This black-finished kit is intended for ceiling applications where a fixed column length of 3 in (7.6 cm) is required to achieve the necessary projection distance and clearance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm) |
| Column Length | 3 in (7.6 cm) |
| Shipping Dimensions | 30" x 30" x 8" (762 x 762 x 203.2 mm) |
| Shipping Weight | 29.5 lbs (13.4 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
All other specifications 8
| Column Color | Black |
| Column Type | Fixed |
| Installation Type | Replacement |
| Keyed Locking | No |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | No |
| UPC | 841872154671 |
Resources
Questions about this part
What components are included in the KITPB003 kit?
This preconfigured kit contains one RPAU projector mount, one CMA455 mount adapter, and one CMS003 3 in (7.6 cm) extension column.
What kind of ceiling is this kit compatible with?
The KITPB003 is designed for replacement installations in suspended ceilings using 2' x 2' (60.33 x 60.33 cm) ceiling tiles.
How much weight can the projector mount support?
This kit has a total weight capacity of 50 lbs (22.7 kg).
Can I adjust the projector angle after it is mounted?
Yes, the included RPAU mount features independent roll, pitch, and yaw adjustability to help you achieve the correct projection angle.
Is the column length adjustable in this kit?
No, this specific kit includes the CMS003, which is a 3 in (7.6 cm) fixed-length column.
