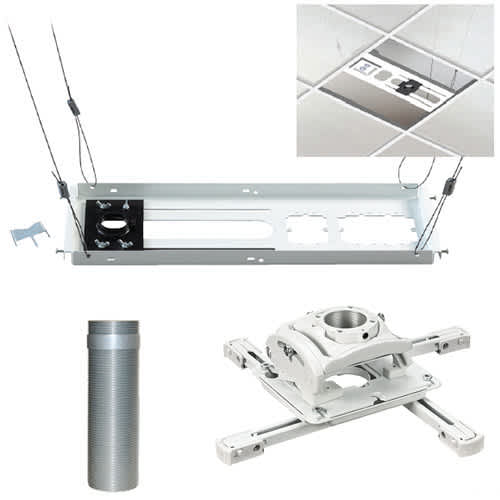

RPA Elite Universal Projector Kit (RPMAUW, CMSZ006S, CMS440)
White universal projector kit for suspended ceilings, featuring RPMAUW mount, CMSZ006S column, and CMS440 kit for 50 lbs capacity
The Chief KITEZ006W is a preconfigured kit designed to simplify the procurement and installation of projector ceiling mounts in suspended environments. This white-finished solution is specifically built for above-tile installations, utilizing the CMS440 Lightweight Suspended Ceiling Kit. This kit is engineered to support most standard suspended ceiling configurations, specifically those utilizing 2' x 2' (60.33 x 60.33 cm) or 2' x 4' (60.33 x 121.92 cm) ceiling tiles. The package includes the RPMAUW Universal Projector Mount and a CMSZ006S fully threaded extension column that provides a 0" - 6" (0 cm - 15cm) length range. The system accommodates a total weight capacity of 50 lbs (22.7 kg) and features keyed locking for security. Once mounted, the projector can be precisely positioned using micro-adjustable, independent roll, pitch, and yaw controls to ensure optimal image alignment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm)2' x 4' (60.33 x 121.92 cm) |
| Column Length | 0" - 6" (0 cm - 15cm) |
| Shipping Dimensions | 25.25" x 12.25" x 6.25"(641.4 x 311.2 x 158.8 mm) |
| Shipping Weight | 17.17 lbs (7.8 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | White |
All other specifications 8
| Column Color | White |
| Column Type | Fully Threaded |
| Installation Type | Above Tile |
| Keyed Locking | Yes |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | No |
| UPC | 841872159324 |
Resources
Questions about this part
What does the KITEZ006W kit include in the box?
This preconfigured kit contains the RPMAUW Universal Projector Mount, the CMSZ006S 6" (152 mm) fully threaded extension column, and the CMS440 Lightweight Suspended Ceiling Kit.
Will this kit work with my suspended ceiling tiles?
The CMS440 kit is designed to work with most suspended ceiling installations, specifically supporting both 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) tile sizes.
How much weight can this projector mount hold?
The KITEZ006W supports a maximum weight capacity of 50 lbs (22.7 kg).
How do I adjust the projector once it is mounted?
The RPMAUW mount provides micro-adjustable, independent roll, pitch, and yaw to allow for precise positioning after installation.
Is the extension column adjustable in length?
The included CMSZ006S fully threaded column provides an adjustable length range of 0" - 6" (0 cm - 15cm).
