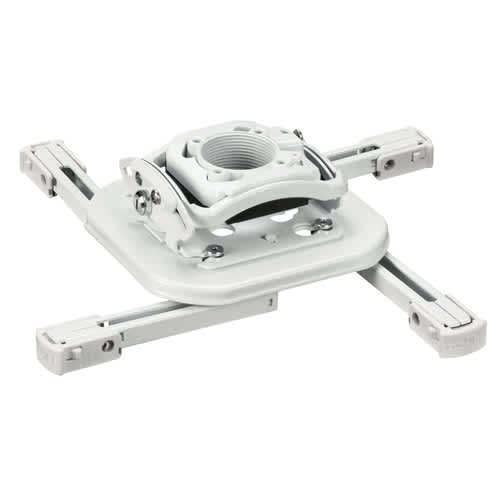

RPA Elite Universal Projector Kit (RPMAUW, CMS003W, CMS440)
Universal white projector kit for suspended ceiling installations, featuring a 50 lbs capacity and micro-adjustable orientation
The Chief KITES003W is a preconfigured projector kit designed to simplify the ordering and installation process for suspended ceiling environments. This white-finish solution provides a complete mounting package by combining the RPMAUW Universal Projector Mount, the CMS003W 3" (76 mm) extension column, and the CMS440 lightweight suspended ceiling kit. This specific configuration is optimized for above-tile installations in environments using 2' x 2' (60.33 x 60.33 cm) or 2' x 4' (60.33 x 121.92 cm) ceiling tiles. The system offers a total weight capacity of 50 lbs (22.7 kg) and provides critical post-installation positioning through independent roll, pitch, and yaw micro-adjustability. To ensure the installation remains secure in public spaces, the kit includes keyed locking features. This universal kit is a single-package solution intended to support most suspended ceiling mounting requirements with a professional white aesthetic.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm)2' x 4' (60.33 x 121.92 cm) |
| Column Length | 3 in (7.6 cm) |
| Extension | 3 in (7.6 cm) |
| Shipping Dimensions | 28" x 12" x 6"(711.2 x 304.8 x 152.4 mm) |
| Shipping Weight | 16 lbs (7.3 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
All other specifications 9
| Color | White |
| Column Color | White |
| Column Type | Fixed |
| Installation Type | Above Tile |
| Keyed Locking | Yes |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | No |
| UPC | 841872162300 |
Resources
Questions about this part
What is included in the KITES003W projector kit?
This kit contains the RPMAUW Universal Projector Mount, a CMS003W 3" (76 mm) extension column, and a CMS440 lightweight suspended ceiling kit.
Can this mount be used in a suspended ceiling with 2x4 tiles?
Yes, this kit is designed for above-tile installation in suspended ceilings using either 2' x 2' (60.33 x 60.33 cm) or 2' x 4' (60.33 x 121.92 cm) tiles.
How much weight can this projector mount support?
The KITES003W kit has a total weight capacity of 50 lbs (22.7 kg).
Does the mount allow for fine-tuning the projector position?
Yes, the mount provides micro-adjustable independent roll, pitch, and yaw to assist with precise projector alignment after installation.
Which technical drawings are available for this kit?
Submittal documentation includes CAD drawings for the KITLS012018, CMS003, and RPAU, as well as technical PDFs for the CMS440, CMS003, and RPA series.
