RPA Elite Universal Projector Kit (RPMAU, CMS003, CMS445)
Universal projector kit for 2' x 2' suspended ceilings, featuring an RPMAU mount, 3" CMS003 extension column, and CMS445 ceiling plate

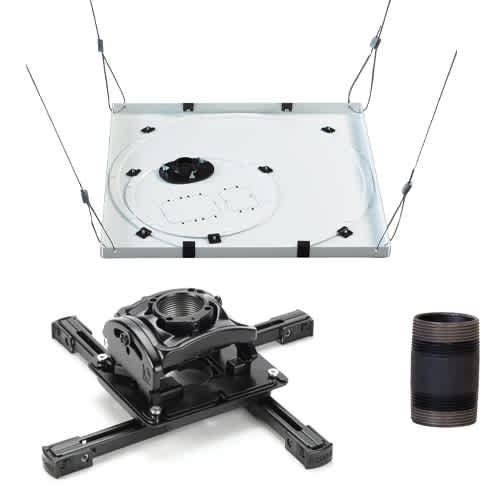

The Chief KITPR003 is a preconfigured RPA Elite Universal Projector Kit designed to streamline the procurement and installation process for professional AV integrators. This specialized solution is intended for fixed ceiling installations within suspended ceiling environments, specifically designed to fit 2' x 2' (60.33 x 60.33 cm) ceiling tiles. This kit simplifies the ordering process by bundling three essential components: the RPMAU Universal Projector Mount, a 3 in (7.6 cm) CMS003 fixed-length extension column, and a CMS445 designer ceiling plate. Designed for both above-tile and replacement installation types, this kit supports a weight capacity of 50 lbs (22.7 kg). The RPMAU mount provides micro-adjustable, independent roll, pitch, and yaw to ensure precise projector positioning after installation. The kit is finished with a black mount and a white column, and it includes keyed locking for security. By providing a unified package, this kit ensures installers have the correct combination of components for standard 2' x 2' grid ceiling mounts.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm) |
| Column Length | 3 in (7.6 cm) |
| Extension | 3 in (7.6 cm) |
| Shipping Dimensions | 30" x 30" x 8" (762 x 762 x 203.2 mm) |
| Shipping Weight | 38.4 lbs (17.4 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
All other specifications 9
| Color | Black |
| Column Color | White |
| Column Type | Fixed |
| Installation Type | Above Tile and Replacement |
| Keyed Locking | Yes |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | No |
| UPC | 841872115030 |
Resources
Questions about this part
What specific components are included in the KITPR003 kit?
This kit includes the RPMAU Universal Projector Mount, a CMS003 3 in (7.6 cm) extension column, and a CMS445 designer ceiling plate.
Will this kit fit a standard 2' x 2' suspended ceiling?
Yes, this kit is specifically designed for 2' x 2' (60.33 x 60.33 cm) ceiling tile sizes using above-tile or replacement installation methods.
What is the maximum weight capacity for this projector kit?
The KITPR003 supports a maximum weight capacity of 50 lbs (22.7 kg).
How much can I adjust the projector once it is mounted?
The RPMAU mount allows for micro-adjustable, independent roll, pitch, and yaw to ensure the projector is perfectly aligned.
Does this kit include security features for the projector?
Yes, the kit features keyed locking to provide security for the installed hardware.
