RPA Elite Universal Projector Kit (RPMAU, CMS003, CMS440, CMA470)
Universal projector kit for suspended ceilings including RPMAU mount, CMS440 kit, and CMA470 storage accessory
The Chief KITES003P provides a streamlined solution for suspended ceiling projector installations by bundling all necessary components into a single preconfigured package. This kit is designed to support most suspended ceiling configurations, including 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) tile sizes. The package includes the RPMAU Universal Projector Mount, which offers independent roll, pitch, and yaw micro-adjustability for precise positioning. The kit is extended by a 3 in (7.6 cm) CMS003 extension column and utilizes the CMS440 Suspended Ceiling Kit for above-tile mounting. To assist with cable management, the CMA470 Above-Tile Storage Accessory is included, providing small-capacity storage for equipment or non-plenum rated cables. This TAA compliant kit features a black finish and includes keyed locking for security during use.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm)2' x 4' (60.33 x 121.92 cm) |
| Column Length | 3 in (7.6 cm) |
| Extension | 3 in (7.6 cm) |
| Shipping Dimensions | 31" x 16" x 9" (787.4 x 406.4 x 228.6 mm) |
| Shipping Weight | 22.65 lbs (10.3 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
All other specifications 11
| Color | Black |
| Column Color | Black |
| Column Type | Fixed |
| Installation Type | Above Tile |
| Keyed Locking | Yes |
| Solution Type | Universal |
| Special Features | Kits |
| Storage Capacity | Small |
| TAA Compliant | Yes |
| UPC | 841872109350 |
| Certifications | TAA |
Resources
Questions about this part
Will this kit work with my suspended ceiling tile size?
Yes, this kit is designed for both 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tiles.
What is included in the KITES003P kit?

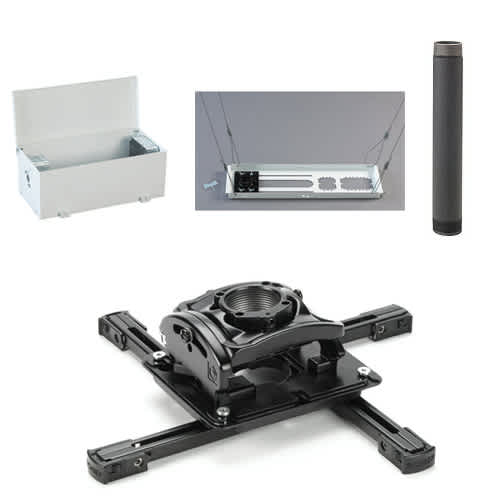

The kit comes with the RPMAU Universal Projector Mount, a CMS003 3 in (7.6 cm) extension column, the CMS440 Suspended Ceiling Kit, and the CMA470 Above-Tile Storage Accessory.
How much weight can this projector mount support?
The kit has a total weight capacity of 50 lbs (22.7 kg) for the mounted projector.
Can I store cables in the CMA470 accessory?
The included CMA470 accessory provides small storage capacity for equipment or non-plenum rated cables above the ceiling.
Does the mount allow for fine-tuning the projector position?
Yes, the RPMAU mount provides micro-adjustable independent roll, pitch, and yaw for accurate aiming.
