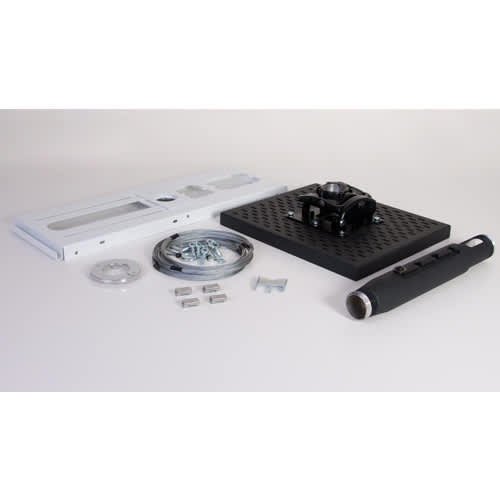

RPA Elite Universal Projector Kit (RPMA1, CMS012018, CMS440)
Universal projector kit for suspended ceilings, includes RPMA1 mount, 12"–18" extension column, and CMS440 lightweight kit
The Chief KITLS012018 is a preconfigured projector ceiling mount kit designed to simplify the procurement and installation process for suspended ceiling environments. This TAA compliant solution includes the RPMA1 projector mount, a CMS012018 3" (76 mm) extension column, and the CMS440 lightweight suspended ceiling kit. The kit is built for versatility, supporting most suspended ceiling installations within a single package. The included 12" to 18" (30.48 cm - 45.72 cm) adjustable extension column provides the necessary height for your specific application. For installers utilizing traditional 1.5" NPT or the newer CPA pinned ceiling plate and column systems, this kit is compatible. To complete the installation, a ceiling plate and extension column are required and must be ordered separately. This kit is rated for a weight capacity of 50 lbs (22.7 kg) and features micro-adjustable, independent roll-pitch-yaw movement for precise projector positioning.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm)2' x 4' (60.33 x 121.92 cm) |
| Column Length | 12" - 18" (30.5cm - 45.7cm) |
| Extension | 12" - 18" (30.48cm - 45.72cm) |
| Shipping Dimensions | 18" x 3.5" x 3.5" (457.2 x 88.9 x 88.9 mm) |
| Shipping Weight | 2.44 lbs (1.1 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
All other specifications 10
| Color | Black |
| Column Color | Black |
| Column Type | Adjustable |
| Installation Type | Above Tile |
| Keyed Locking | Yes |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | Yes |
| UPC | 841872107653 |
| Certifications | TAA |
Resources
Questions about this part
What is included in the KITLS012018 projector kit?
This kit includes the RPMA1 projector mount, a CMS012018 3" (76 mm) extension column, and the CMS440 lightweight suspended ceiling kit.
What additional components do I need to complete the installation?
A ceiling plate and an extension column are required for a full installation and must be ordered separately from this kit.
Will this mount fit a 2' x 2' or 2' x 4' suspended ceiling?
Yes, the CMS440 kit in this package is designed for use with 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tiles.
Does this kit offer security for the projector?
Yes, the RPA Elite series features keyed locking to provide additional security for the projector installation.
How much height adjustment is provided by the column?
The included CMS012018 extension column provides an adjustable height range of 12" to 18" (30.48 cm - 45.72 cm).
