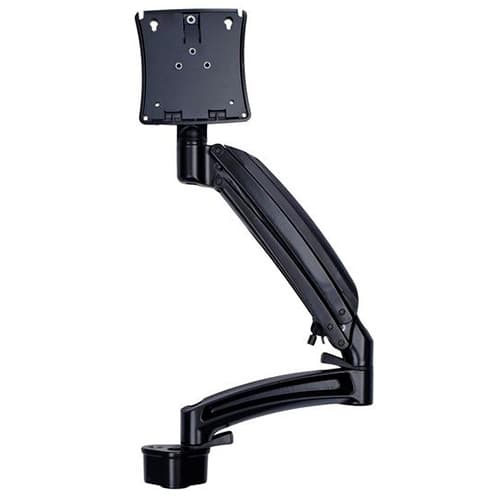

Reduced-Height Dual Monitor Expansion Arm Kit for K1D, K1P, K1S and K1W Products - KRA227BXRH
Dual monitor expansion kit for K1 series mounts, supporting 10-32" displays with 5-25 lbs. capacity per monitor
The KRA227BXRH expansion kit provides a streamlined method for converting single-arm Chief Kontour™ K1 mounts into dual-arm configurations. Specifically designed to upgrade KTA220B, K1P120, K1S120, or K1W120 single-arm units, this kit enables the transition to K1D220, K1P220, K1S220, or K1W220 dual-arm systems. This kit is a reduced-height solution intended for desk or tabletop applications. Each arm supports a monitor with a typical screen size of 10-32" (254mm - 813mm) and maintains a weight capacity of 5-25 lbs. (2.3 - 11.3 kg) per monitor. The gas-spring technology allows for 13" (330 mm) of dynamic height adjustment, facilitating effortless tilt and positioning for users in both sitting and standing positions. The kit also includes tool-free cable management covers to assist in maintaining a clean installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 33.75" x 17.5" x 6.5" (857.3 x 444.5 x 165.1 mm) |
| Shipping Weight | 9.97 lbs (4.5 kg) |
| Typical Screen Size | 10 - 32" (254mm - 813mm) |
| Weight Capacity | 5 - 25 lbs. (2.3 - 11.3 kg) per monitor |
| Accessory Type | ExtensionMulti-Display |
| Application | AccessoryDesk-Tabletop |
| Color | Black |
| Reduced Height | Yes |
| TAA Compliant | No |
| UPC | 841872165578 |
Resources
Questions about this part
Which single-arm mounts can I upgrade with the KRA227BXRH?
This kit upgrades the KTA220B, K1P120, K1S120, or K1W120 into a dual-arm configuration.
Will this kit support my specific monitor weight and size?
The kit is rated for displays between 10-32" (254mm - 813mm) with a weight capacity of 5-25 lbs. (2.3 - 11.3 kg) per monitor.
How much height adjustment can I get with this kit?
The gas-spring technology provides 13" (330 mm) of dynamic height adjustment for the displays.
Does this expansion kit include cable management?
Yes, it includes tool-free cable management covers to assist with professional cable organization.
Is this KRA227BXRH kit TAA compliant?
This specific expansion kit is not listed as TAA compliant, though many Kontour K1 products are.
