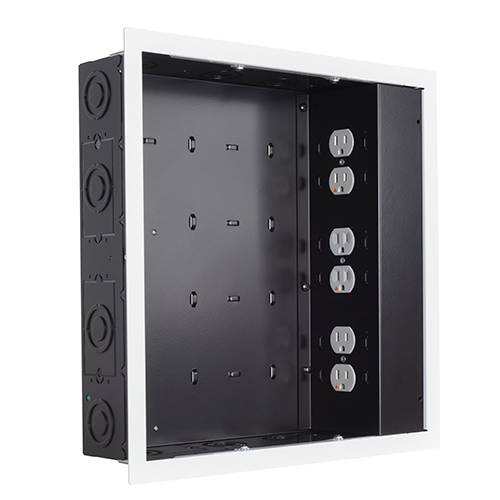

Proximity® In-wall Storage Box with 6 Receptacle Filter & Surge - PAC526FWP6
In-wall storage box with 6-receptacle surge and filter outlet, 15A 1875W continuous output, and TAA compliance
The Chief PAC526FWP6 provides an organized, recessed space for routing excess cabling behind a display, simplifying complex flat panel installations. This large in-wall storage box features an integrated flange that allows for drywall mounting and provides a clean, trimmed aesthetic upon installation. The unit includes a high-performance, dual gang housing equipped with an isolated ground, 6-receptacle outlet that features non-sacrificial multi-stage filtration and surge protection. This specialized power system is designed to protect sensitive electronic equipment from damage caused by power disturbances and disruptive high-frequency noise. With an output of 15A and 1875 W continuous, the box is TAA compliant and UL Listed. This solution is specifically compatible with a wide range of Chief mounting systems, including PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and Fusion wall mounts.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.88 in (9.9 cm) |
| Height | 15.51 in (39.4 cm) |
| Overall Dimensions | 15.51" x 15.4" x 3.88” (394 x 391 x 98 mm) |
| Shipping Weight | 16 lbs (7.3 kg) |
| Weight Capacity | 10 lbs (4.5 kg) |
| Width | 15.4 in (39.1 cm) |
| Accessory Type | In-WallPower |
| Application | In-Wall |
All other specifications 7
| Color | Black |
| Flange Color | White |
| Receptacle Type | Six Surge and Filter |
| Special Features | FlangesSurge and Filtering |
| TAA Compliant | Yes |
| UPC | 841872167114 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Questions about this part
What Chief mounting systems is the PAC526FWP6 compatible with?
This storage box is compatible with PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and Fusion wall mounts.
Does the PAC526FWP6 include surge protection?
Yes, it features a 6-receptacle outlet with non-sacrificial multi-stage filtration and surge protection, providing a Type 3 SPD with a 600V L-N Voltage Protection Rating (VPR).
What is the electrical output capacity of this box?
The unit provides a continuous output of 15A and 1875 W.
What do I need for a white finish on this unit?
While this SKU features a black body with a white flange, you can use the PAC526CVRW-KIT for a Proximity White Cover Kit.
Which installation documents are available for this model?
Technical drawings, CAD files (dwg/rfa), and the PAC525 526 Installation Manual are available for submittals.
