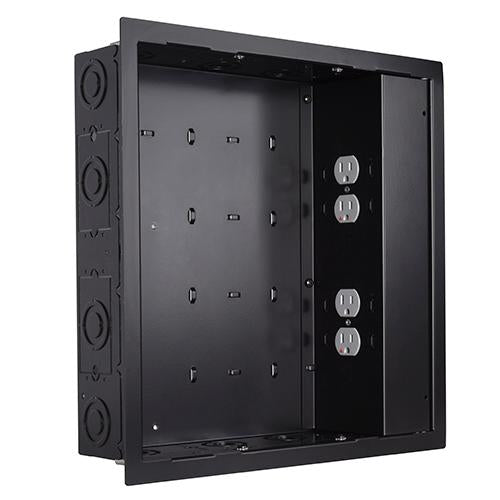

Proximity® In-wall Storage Box with 4 Receptacle Filter & Surge - PAC526FBP4
In-wall storage box with 4-receptacle surge and filter, featuring a black flange for drywall mounting
The Chief PAC526FBP4 provides a recessed, organized space for routing excess cables behind flat panel displays. This large Proximity® In-Wall Storage Box features a high-performance, dual gang housing designed to simplify installation in professional environments. It includes a 4-receptacle outlet with non-sacrificial multi-stage filtration and surge protection, which helps protect equipment from damage caused by power disturbances and disruptive high-frequency noise. This unit offers 15A, 1875 W continuous output and a Voltage Protection Rating (VPR) of 600V L-N. For an aesthetic finish, this SKU includes a black flange that allows for direct drywall mounting. This storage solution is compatible with a wide range of Chief mounting systems, including the PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall™, and Fusion® series wall mounts. This part is TAA compliant and UL listed for professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.88 in (9.9 cm) |
| Height | 15.51 in (39.4 cm) |
| Overall Dimensions | 15.51" x 15.4" x 3.88” (394 x 391 x 98 mm) |
| Shipping Weight | 15.23 lbs (6.9 kg) |
| Weight Capacity | 10 lbs (4.5 kg) |
| Width | 15.4 in (39.1 cm) |
| Accessory Type | In-WallPower |
| Application | In-Wall |
All other specifications 7
| Color | Black |
| Flange Color | Black |
| Receptacle Type | Four Surge and Filter |
| Special Features | FlangesSurge and Filtering |
| TAA Compliant | Yes |
| UPC | 841872167077 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Questions about this part
Will the PAC526FBP4 fit my Chief wall mount?
Yes, it is compatible with Chief PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and Fusion wall mounts.
What electrical specifications do the receptacles have?
The unit features four surge and filter receptacles providing 15A, 1875 W continuous output with a 600V L-N Voltage Protection Rating (VPR).
Do I need to buy anything else to cover the box?
You can purchase the Proximity® Black Cover Kit (SKU: PAC526CVR-KIT) to provide a finished cover for the PAC526.
What is the depth requirement for the in-wall installation?
The storage box has a depth of 3.88 in (9.9 cm) and overall dimensions of 15.51" x 15.4" x 3.88" (394 x 391 x 98 mm).
Which installation manual should I use for submittals?
Installers can refer to the PAC525/526 Installation Manual (PDF) for guidance on mounting and wiring this storage box.
