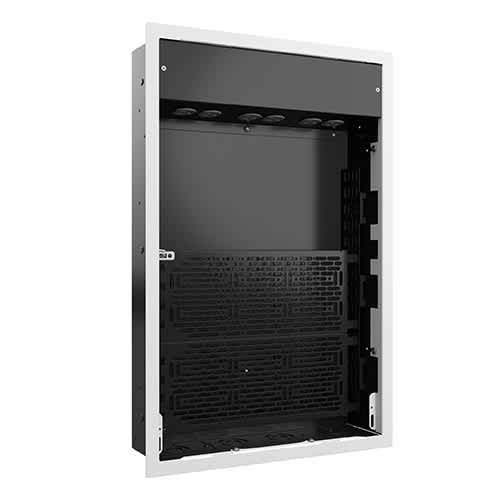

Proximity® Extra-Large In-Wall Storage Box with 6-Receptacles and Lever Lock™
Extra-large in-wall storage box with six surge and filter receptacles and two tool-free Lever Lock™ plates
The Chief PAC527LFWP6 is a Proximity® Extra-Large In-Wall Storage Box designed to simplify the organization and concealment of AV components within a wall. This unit is built to house equipment in the three dimensions of the storage space, allowing installers to tuck power bricks behind a backplane while mounting active equipment to the front. This configuration is particularly useful for managing difficult port locations on various AV devices. The PAC527L series utilizes multi-level, multi-sectioned Lever Lock™ plates that can be mounted on four different levels to help organize and layer components efficiently. This model includes two large, tool-free Lever Lock™ plates, which facilitate both rapid installation and efficient system servicing. For specialized management, these plates are compatible with Middle Atlantic Products’ Forward Cable Management Solutions. This TAA compliant and UL Listed box is engineered for professional installs requiring integrated power protection and organized in-wall cable management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.9 in (9.9 cm) |
| Height | 14.25 in (36.2 cm) |
| Operating Temperature | 30° to 104°F (-1° to 40°C) |
| Shipping Weight | 25.1 lbs (11.4 kg) |
| Weight Capacity | In-wall Box: 40 lbs (18.1 kg) - Lever Lock Plate Capacity: 10 lbs (4.5 kg) |
| Width | 22 in (55.9 cm) |
| Accessory Type | In-Wall |
| Application | In-WallWall |
All other specifications 7
| Color | Black and White |
| Flange Color | White |
| Receptacle Type | Six Surge and Filter |
| Special Features | FlangesSurge and Filtering |
| TAA Compliant | Yes |
| UPC | 841872174556 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Questions about this part
Will the PAC527LFWP6 work with Middle Atlantic products?
Yes, the Lever Lock™ plates are compatible with Middle Atlantic Products’ Forward Cable Management Solutions.
How much weight can the PAC527LFWP6 hold?
The in-wall box has a weight capacity of 40 lbs (18.1 kg), while the Lever Lock Plate has a capacity of 10 lbs (4.5 kg).
What is the difference between the PAC527LFWP6 and other power options?
This SKU includes six surge and filter receptacles. Other configurations allow for two-outlet power filter kits or two-outlet IP controlled Select Series Compact PDUs via RackLink™.
Can I change the color of the cover or flange?
Yes, you can use the Proximity® White Cover Kit (PAC527CVRW-KIT) or the Proximity® Black Cover Kit (PAC527CVR-KIT) to match your installation.
Which installation document should I use for submittals?
The PAC527L Series Installation Manual provides the necessary technical details for installation and system configuration.
