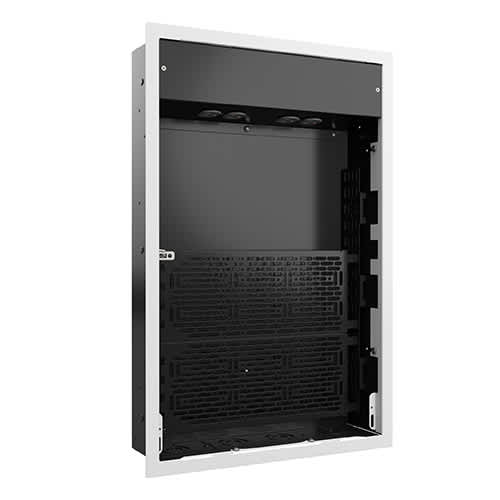

Proximity® Extra-Large In-Wall Storage Box with 4-Receptacles and Lever Lock™
Extra-large in-wall storage box featuring 4-receptacle surge and filter protection and tool-free Lever Lock plates
The Chief PAC527LFWP4 Proximity® Extra-Large In-Wall Storage Box provides a highly organized solution for concealing AV components and power within a wall. This unit is built around the Proximity® PAC527L series, utilizing two large, tool-free Lever Lock™ plates that allow installers to mount equipment on four different levels. This multi-level capability enables efficient component organization in all three dimensions of the storage space, which is particularly useful for managing difficult port locations or hiding power bricks behind the backplane. This specific model features a four-receptacle surge and filter kit for integrated power protection. For varying installation requirements, the box is designed for use in 3.5" stud bays with a 3.9 in (9.9 cm) depth, or in 2.5" stud bays with a 3" depth. The system is TAA compliant and UL Listed, making it suitable for professional commercial installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.9 in (9.9 cm) |
| Height | 14.25 in (36.2 cm) |
| Operating Temperature | 30° to 104°F (-1° to 40°C) |
| Shipping Weight | 23.1 lbs (10.5 kg) |
| Weight Capacity | In-wall Box: 40 lbs (18.1 kg) - Lever Lock Plate Capacity: 10 lbs (4.5 kg) |
| Width | 22 in (55.9 cm) |
| Accessory Type | Component StorageIn-Wall and Power |
| Application | In-WallWall |
All other specifications 7
| Color | Black and White |
| Flange Color | White |
| Receptacle Type | Four Surge and Filter |
| Special Features | FlangesSurge and Filtering |
| TAA Compliant | Yes |
| UPC | 841872174549 |
| Certifications | TAAUL Listed |
Resources
Questions about this part
Will the PAC527LFWP4 fit in my wall stud space?
The box is designed for use in 3.5" stud bays at a depth of 3.9 in (9.9 cm) or 2.5" stud bays at a depth of 3".
What is the weight capacity of this storage box?
The in-wall box itself has a weight capacity of 40 lbs (18.1 kg), while the Lever Lock Plate capacity is 10 lbs (4.5 kg).
What other power protection options can I add?
While this SKU includes a four-receptacle surge and filter kit, you can also use the PACPC1 two-outlet Power Filter Kit or Middle Atlantic Products' RackLink™ PDUs.
How do I service the equipment once it is mounted?
The tool-free Lever Lock™ plates can be adjusted to four different levels, allowing for efficient servicing and component reorganization.
Is this product suitable for government contracts?
Yes, this unit is TAA compliant and UL Listed.
