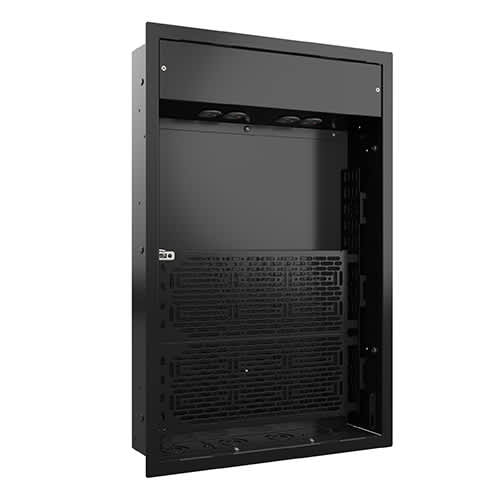

Proximity® Extra-Large In-Wall Storage Box with 4-Receptacles and Lever Lock™
Extra-large in-wall storage box with Lever Lock™ plates, 4-receptacle surge and filter protection, and TAA compliance
The PAC527LFBP4 is an extra-large Proximity® in-wall storage box designed to simplify the organization of AV components within a wall cavity. This unit features two large, tool-free Lever Lock™ plates that allow installers to mount equipment on four different levels. This multi-level capability makes it easy to arrange components in three dimensions, allowing installers to hide power bricks behind the backplane while keeping equipment mounted to the front. This configuration is particularly useful for managing difficult port locations on AV hardware. This specific model comes equipped with a four-receptacle surge and filter kit to provide integrated power protection. The box is TAA compliant and UL Listed for professional installations. For 3.5" stud bays, the dimensions are 14.25" x 22" x 3.9" (864 x 559 x 99 mm), while for 2.5" stud bays, the dimensions are 14.25" x 22" x 3" (864 x 559 x 76 mm). The overall weight capacity for the in-wall box is 40 lbs (18.1 kg), with the Lever Lock Plate capacity rated at 10 lbs (4.5 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.9 in (9.9 cm) |
| Height | 14.25 in (36.2 cm) |
| Operating Temperature | 30° to 104°F (-1° to 40°C) |
| Shipping Weight | 23.1 lbs (10.5 kg) |
| Weight Capacity | In-wall Box: 40 lbs (18.1 kg) - Lever Lock Plate Capacity: 10 lbs (4.5 kg) |
| Width | 22 in (55.9 cm) |
| Accessory Type | Component StorageIn-Wall and Power |
| Application | In-WallWall |
All other specifications 7
| Color | Black |
| Flange Color | Black |
| Receptacle Type | Four Surge and Filter |
| Special Features | FlangesSurge and Filtering |
| TAA Compliant | Yes |
| UPC | 841872174495 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Questions about this part
Will the PAC527LFBP4 fit in a 2.5 inch stud bay?
Yes, when used for 2.5" stud bays, the product dimensions are 14.25" x 22" x 3" (864 x 559 x 76 mm).
How much weight can I mount on the Lever Lock plates?
The Lever Lock Plate has a capacity of 10 lbs (4.5 kg), while the total in-wall box weight capacity is 40 lbs (18.1 kg).
What additional power options are available for this series?
You can optionally include a PACPC1 two-outlet Power Filter Kit, a PAC527P4-KIT four-outlet surge and filter kit, or a PAC527P6-KIT six-outlet surge and filter kit.
Can I use Middle Atlantic products with this box?
The Lever Lock™ plates are compatible with Middle Atlantic Products’ Forward Cable Management Solutions.
Which document should I use for a submittal?
Installers can refer to the PAC527L Series Installation Manual for mounting instructions or the In-Wall Storage Flyer for general product overview.
