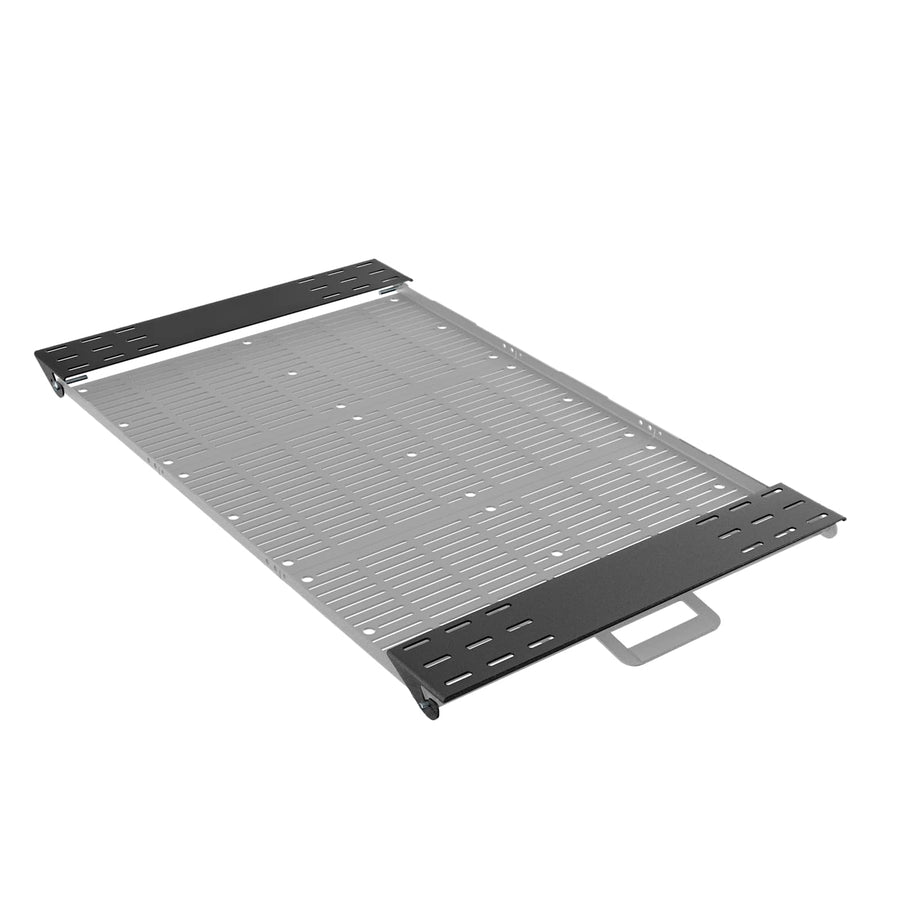

Proximity® Component Storage Panel Under Table Hinge Bracket
Hinge bracket for custom Proximity component storage panels installed under tables, supporting a 20 lbs weight capacity
The Chief CSPHK is a specialized hinge bracket designed to facilitate the custom use of Proximity CSPH component storage solutions. When the storage panels are broken into thirds, these brackets allow the remaining panels to be installed directly underneath conference room tables or desks. This configuration keeps essential components and cables organized and out of sight, preventing clutter in high-traffic workspaces. Once installed, the panel pivots 90° to a vertical position, allowing installers to access equipment easily without fighting gravity. The mounting process is simplified by a provided template that ensures accurate bracket placement. For added security, the system utilizes security locking screws to keep the installation stable. This bracket is TAA compliant and is intended for use with Proximity CSPH components to create organized, accessible, and professional under-table enclosures.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Minimum Depth | 1.15 in (2.9 cm) |
| Shipping Dimensions | 16.25" x 9.625" x 3.625" (412.8 x 244.5 x 92.1 mm) |
| Shipping Weight | 2.55 lbs (1.2 kg) |
| Weight Capacity | 20 lbs (9.07 kg) |
| Accessory Type | Component Storage |
| Application | Under Table |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872170947 |
| Certifications | TAA |
Resources
Questions about this part
How much weight can the CSPHK hinge bracket support?
The bracket has a weight capacity of 20 lbs (9.07 kg) for the installed components.
Will this bracket help with accessing components under a table?
Yes, the bracket allows the storage panel to pivot 90° into a vertical position for easier servicing.
How do I ensure the brackets are mounted correctly?
The product ships with a template to assist with accurate mounting of the brackets.
What surface area can the Proximity panels cover with this bracket?
The bracket supports various configurations, including a full panel area of 14” x 25.5” (357 sq. in.) or two-thirds of a panel at 14” x 16.8” (236 sq. in.).
Which document should I use for the installation process?
The CSPHK Installation Manual (PDF) provides the necessary procedures for mounting the hinge bracket.
