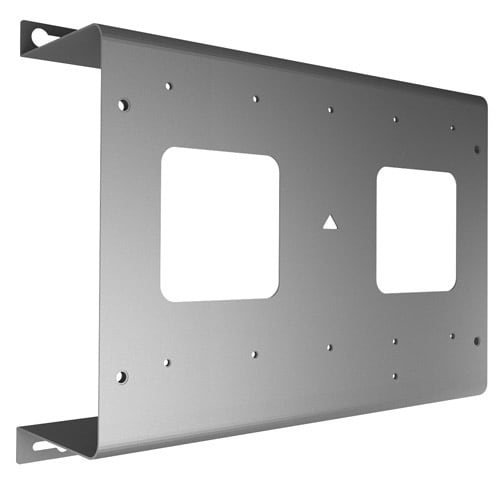

Projector Platform
Projector platform for mounting SMART™ All-in-One solutions or short throw projectors over existing whiteboards
The Chief WBAP Projector Platform is specifically designed to be used in conjunction with all WBM2 over whiteboard mount solutions. This accessory allows installers to achieve a single, unified mounting plane for SMART™ all-in-one solutions, including the i2, i3, i4, i5, i6, ix, ix2, and ix3 series. It is an essential component when mounting interactive displays directly over an existing dry erase board. The platform is compatible with a wide range of SMART™ short throw projectors, including the UF45, UF55, UF65, UF75, UF70, UX60, UX80, and U100 models. This platform supports a weight capacity of 25 lbs (11.3 kg) and features height adjustability, lateral shift, and micro-adjustable capabilities to ensure precise positioning during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 5.6 in (14.2 cm) |
| Height | 14.5 in (36.8 cm) |
| Overall Dimensions | 14.5" x 17.4" x 5.6" (368 x 442 x 141 mm) |
| Shipping Weight | 11.7 lbs (5.3 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Width | 17.4 in (44.2 cm) |
| Adjustability | Height AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
All other specifications 5
| Color | Silver |
| Orientation | Landscape |
| TAA Compliant | Yes |
| UPC | 841872153056 |
| Certifications | TAA |
Resources
Questions about this part
Will the WBAP work with SMART™ All-in-One solutions?
Yes, it is designed for SMART™ i2, i3, i4, i5, i6, ix, ix2, and ix3 solutions.
What type of wall can this platform be mounted to?
This platform can be installed directly to wood stud walls, steel stud walls, concrete, or brick.
Which short throw projectors are compatible with this platform?
It is compatible with SMART™ UF45, UF55, UF65, UF75, UF70, UX60, UX80, and U100 wall arms.
What is the maximum weight capacity for the WBAP?
The platform has a weight capacity of 25 lbs (11.3 kg).
Does this platform include the WBM2 mount?
No, the WBAP is an accessory designed to be used in combination with WBM2 over whiteboard mount solutions.
