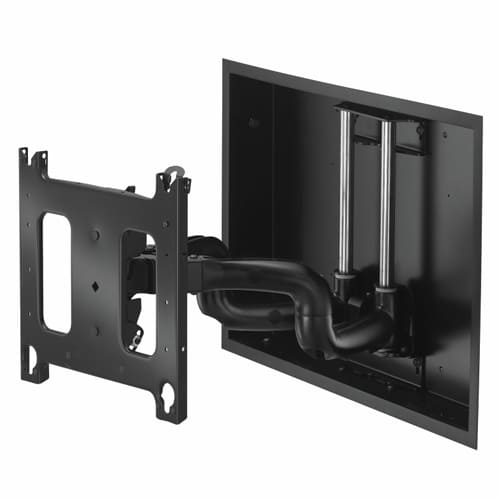

PNRIWUB, Large Low-Profile In-Wall Swing Arm Mount - 22 Inch
Large in-wall swing arm mount with 22" extension and 200 lbs capacity for low-profile installations
The PNRIWUB is a large, low-profile in-wall swing arm mount designed to provide a highly adjustable viewing experience while maintaining a clean aesthetic. This unit ships fully assembled to reduce installation time on the job site. It is designed to extend over 22" (569 mm), allowing for versatile viewing angles and easier access to cabling behind the display. The mount features an integrated PSBUB P-Series Universal Interface Bracket, which eliminates the need for a separate interface bracket. This specific SKU is intended for use with a PAC501 In-Wall Accessory, which must be ordered separately to complete the in-wall installation. The system supports both landscape and portrait orientations and includes a post-installation leveling roll to ensure the display is perfectly aligned. With a weight capacity of 200 lbs (90.7 kg) and a minimum installation depth of 0.6 in (1.5 cm), it is a robust solution for large-format displays.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Minimum Depth | 0.6 in (1.5 cm) |
| Shipping Dimensions | 34.5" x 23.5" x 7" (876.3 x 596.9 x 177.8 mm) |
| Shipping Weight | 61.7-61.7 lbs (27.99-27.99 kg) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Adjustability | Extension, Swivel, Tilt |
| Application | In-Wall |
| Color | Black |
| Orientation | LandscapePortrait |
All other specifications 7
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | No |
| Tilt | +2° / -15° |
| UPC | 841872109237 |
| VESA Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Certifications | UL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Video Conferencing Camera Shelf – 9", for Extra-Large Displays
PAC810$190.40
Video Conferencing Camera Shelf - 14 Inch
PAC716$179.20
P-Series CPU/DVD/Media Player Adapter-PAC251
PAC251$309.60
900x600 VESA Interface Adapter Bracket
PSB2104$273.60

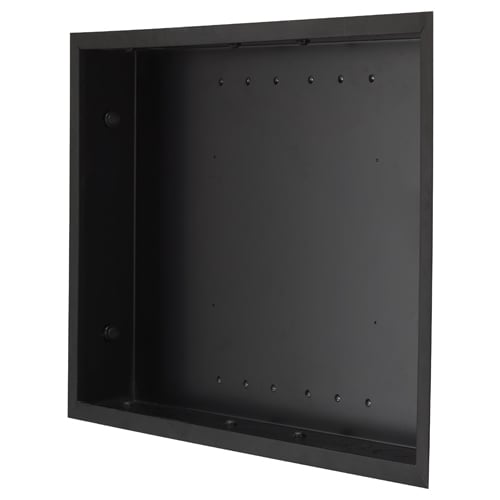

PAC501B, M and P-series In-Wall Swing Arm Accessory
PAC501B$320.80
P-Series CPU/DVD/Media Player Adapter-PAC253
PAC253$272.00
P-Series CPU/DVD/Media Player Adapter-PAC252
PAC252$347.20
PSBUB, P-Series Universal Interface Bracket
PSBUB$177.60
OFRBC-8 OFR Overfloor Raceway Base and Cover
OFRBC-8$87.21
Center Channel Speaker Adapter-PACCC2
PACCC2$262.40
Verified fitment
Questions about this part
What do I need to buy to complete the in-wall installation for the PNRIWUB?
You must order a PAC501 In-Wall Accessory separately to complete the installation; however, the PSBUB interface bracket is included with this SKU.
Will the PNRIWUB fit my display?
It is verified against 7,895 display models from 317 manufacturers, including Samsung 460CX, LG 100QNED85AU, and Panasonic 55VW3KD.
How much can I adjust the display once it is mounted?
The mount provides extension, swivel, and tilt capabilities, with a tilt range of +2° to -15°.
What is the VESA compatibility for this swing arm mount?
The mounting pattern supports VESA patterns ranging from 200 x 200mm up to 862 x 517mm.
Does this mount require special backing in the wall?
This is an in-wall application with a minimum installation depth of 0.6 in (1.5 cm) and a 200 lbs (90.7 kg) capacity.
