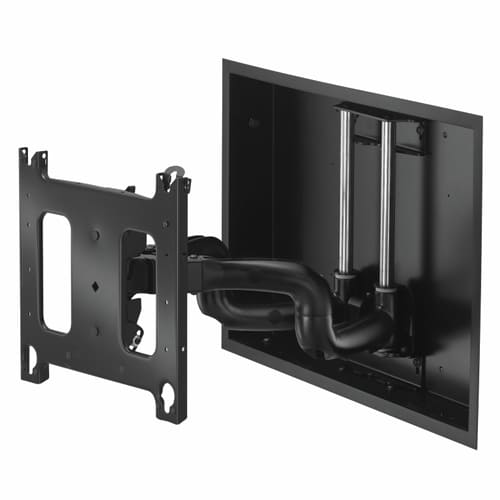

PNRIW2000B, Large Low-Profile In-Wall Swing Arm Mount - 22 Inch (without interface)
Large in-wall swing arm mount for 22-inch displays, 200 lbs capacity, with extension, swivel, and tilt adjustability
The PNRIW2000B is a large low-profile in-wall swing arm mount designed to facilitate ultra-slim installations while maintaining ease of service. This dual-arm system extends over 22" (569 mm), allowing the display to be pulled forward for viewing from multiple angles or for access to rear connections. It is designed to be installed into a PAC501 In-Wall Accessory, which must be ordered separately. This mount ships fully assembled to reduce on-site installation time and includes a post-installation leveling roll for precise final alignment. The mount supports both landscape and portrait orientations and offers a tilt range of +2° / -15°. With a weight capacity of 200 lbs (90.7 kg) and a minimum depth of 0.6 in (1.5 cm), it provides a stable, recessed solution for professional AV environments. This SKU does not include an interface bracket; the PSBUB is required for the PNRIWUB variant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Minimum Depth | 0.6 in (1.5 cm) |
| Shipping Dimensions | 34.25" x 24" x 7.5" (870 x 609.6 x 190.5 mm) |
| Shipping Weight | 51.33 lbs (23.3 kg) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Adjustability | Extension, Swivel, Tilt |
| Application | In-Wall |
| Color | Black |
| Interface Included | No |
All other specifications 8
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal and Custom |
| TAA Compliant | No |
| Tilt | +2° / -15° |
| UPC | 841872109220 |
| VESA Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Certifications | UL Listed |
Resources
You'll need these with it
P-Series CPU/DVD/Media Player Adapter-PAC253
PAC253$272.00
P-Series CPU/DVD/Media Player Adapter-PAC252
PAC252$347.20
P-Series CPU/DVD/Media Player Adapter-PAC251
PAC251$309.60
PSBUB, P-Series Universal Interface Bracket
PSBUB$177.60
PAC501B, M and P-series In-Wall Swing Arm Accessory
PAC501B$320.80
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
900x600 VESA Interface Adapter Bracket
PSB2104$273.60
Center Channel Speaker Adapter-PACCC2
PACCC2$262.40
Video Conferencing Camera Shelf - 14 Inch
PAC716$179.20
ClickConnect Padlock
PAC138$37.60
P-Series Rotation Adapter
PAC400$320.80
Verified fitment
Questions about this part
What do I need to buy to complete the installation of the PNRIW2000B?
This SKU does not include an interface. You must order a PAC501 In-Wall Accessory separately to create an ultra low profile installation.
Will the PNRIW2000B fit my display?
This mount is verified against 3,918 display models from 145 manufacturers, including Samsung, LG Electronics, Sony, Panasonic, Philips, and Sharp.
How much can the PNRIW2000B extend from the wall?
The dual-arm system extends over 22" (569 mm) to allow for viewing from various angles or servicing the display.
What is the VESA pattern for this mount?
It supports VESA mounting patterns ranging from 200 x 200mm to 862 x 517mm.
Can I adjust the tilt on this mount?
Yes, the PNRIW2000B provides a tilt range of +2° / -15° and includes a post-installation leveling roll.
