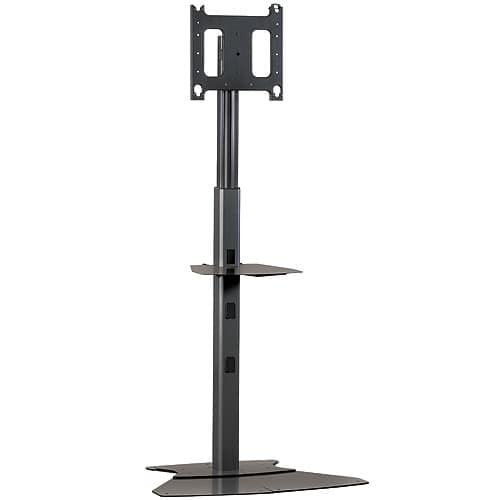

PF1UB, Large Flat Panel Floor AV Stand
Floor-based AV stand for 42"-86" displays, 200 lbs capacity, with manual height adjustment and tilt
The Chief PF1UB is a professional-grade floor-based AV stand designed for digital signage and corporate presentation environments. This mobile solution is built to support a single display ranging from 42" to 86" (1067–2184 mm) with a maximum weight capacity of 200 lbs (90.7 kg). The PF1UB features manual height adjustment of up to 34 in (86.4 cm) and allows for both landscape and portrait orientations to suit specific installation requirements. For installers managing uneven flooring, this stand includes a post-installation leveling roll. This unit ships with a universal interface bracket, which facilitates compatibility with a wide range of displays. To improve rigidity for touchpanel applications, the PACTP1 Touchpanel Stabilizer accessory can be added. This stand is a low-profile, universal solution intended for high-traffic commercial spaces where a permanent wall mount is not feasible.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Manual Height Adjustment | 34 in (86.4 cm) |
| Shipping Dimensions | 58" x 24.5" x 8.5" (147.3 x 62.2 x 21.6 cm) |
| Shipping Weight | 144-144 lbs (65.32-65.32 kg) |
| Typical Screen Size | 42"- 86" (1067mm - 2184mm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Adjustability | Tilt, Height Adjustable |
| Application | Floor-Cart |
| Color | Black |
All other specifications 6
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872100654 |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Video Conferencing Camera Shelf - 14 Inch
PAC716$179.20
Center Channel Speaker Adapter-PACCC2
PACCC2$262.40
P-Series CPU/DVD/Media Player Adapter-PAC251
PAC251$309.60
900x600 VESA Interface Adapter Bracket
PSB2104$273.60
Center Channel Speaker Adapter-PACCC1
PACCC1$153.60
P-Series CPU/DVD/Media Player Adapter-PAC253
PAC253$272.00
Height-Adjustable Accessory Shelf, TAA Compliant
PAC710$147.20
P-Series Rotation Adapter
PAC400$320.80
P-Series CPU/DVD/Media Player Adapter-PAC252
PAC252$347.20
PSBUB, P-Series Universal Interface Bracket
PSBUB$177.60
CMK10 CordMate Cord Organizer Kit
CMK10$25.59
Verified fitment
Questions about this part
Will this stand fit my display?
The PF1UB is verified against 6,074 display models from 288 manufacturers, including Sony 55BZ30P, Samsung 460DX, and LG 100QNED8.
What accessories are needed for a touchpanel installation?
For increased rigidity in touchpanel applications, you should add the PACTP1 Touchpanel Stabilizer accessory.
What is included with the PF1UB stand?
This model ships with a universal interface bracket included; however, specific display adapters like the PSB2104 may be required for certain VESA patterns.
Can this stand be used for portrait orientation?
Yes, the PF1UB is designed to support displays in both landscape and portrait orientations.
Which document is best for submittals?
For technical drawings and submittals, you can refer to the PF12000 Technical Drawing (PDF) or the PF1 CAD Drawing (dwg) provided in the resources.
