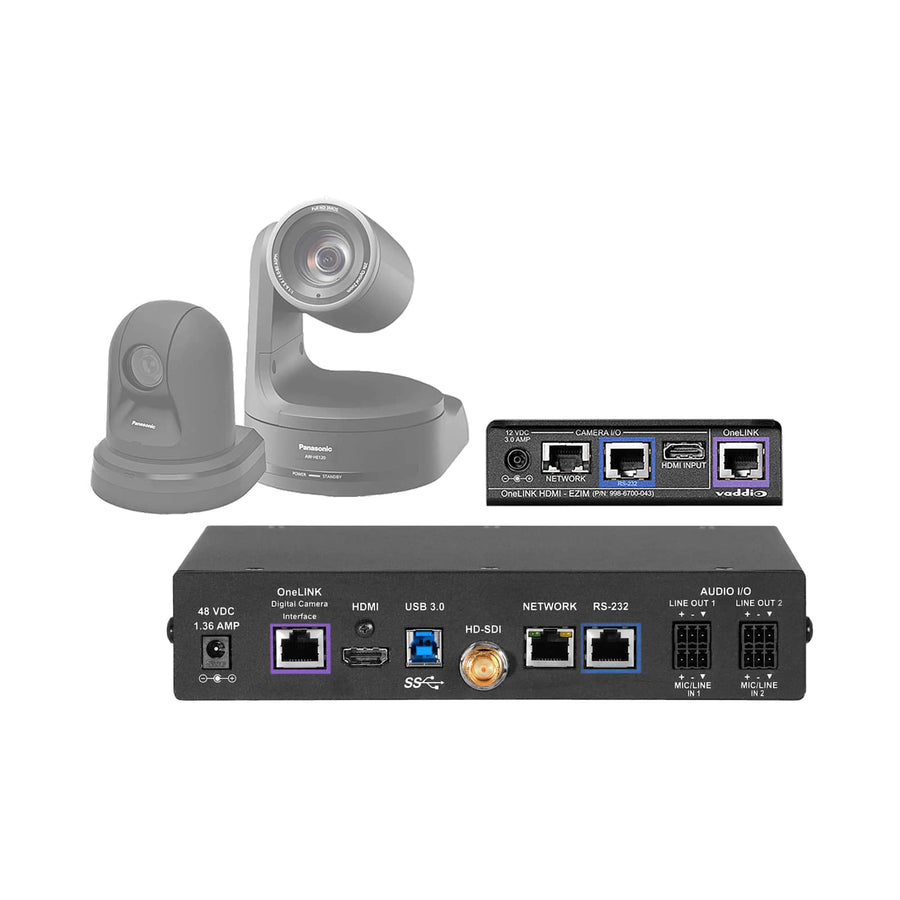

OneLINK Bridge Kit for Sony and Panasonic HE-Series Cameras
Video and audio bridge for Sony and Panasonic HE-series cameras, extending signals and power over a single Cat-5e or Cat-6 cable
The Vaddio 999-9630-000 OneLINK Bridge Kit is designed to integrate non-USB cameras and audio components into a USB conferencing environment. By bridging audio and video signals, it allows traditional videoconferencing-quality equipment to connect to soft-client applications like Zoom, Google Hangouts, or Skype for Business. Specifically tailored for Sony SRG and Panasonic HE series cameras, this kit simplifies deployment by extending power, video, and control over a single Cat-5e cable for up to 230 ft (70m), or a Cat-6 cable for distances up to 328 ft (100m). This bridge provides high-performance connectivity, including 3G SDI, HDMI, and USB 3.0 Type B outputs, while supporting uncompressed USB at up to 1080p/60 resolution. The system includes a built-in browser-based user interface for remote control and supports 3rd party control via RS232 or Telnet. For professional installers, the Vaddio Deployment Tool enables the management of hundreds of conference rooms through a single desktop application. This kit is TAA compliant and UL listed, making it suitable for various professional installation environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.5 in (16.5 cm) |
| Distance | 328 in (833.1 cm) |
| Height | 1.72 in (4.4 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 3.3 lbs (1.5 kg) |
| Shipping Dimensions | 14" x 13" x 13" (355.6 x 330.2 x 330.2 mm) |
| Shipping Weight | 9 lbs (4.1 kg) |
| Width | 8.38 in (21.3 cm) |
All other specifications 19
| 3rd Party Control | RS232Telnet |
| Bridged Signal | Audio and Video |
| Browser-based User Interface for Remote Control | Built-in |
| Color | Black |
| Compatible With | Sony |
| Extension System | with OneLINK Bridge |
| Extension Type | CameraCodec |
| Input Ports | HDbTLine Level AudioMic Level Audio |
| OneLINK Bridge adds | 328 ft (100m) Power Video Control Extension3G SDIAudio MixerHDMIUSB 3.0 |
| OneLINK Compatibility | Native |
| Output Ports | 3G SDIAudioHDMIUSB 3.0 Type B |
| Power Cord | US Cord |
| Power Supply | 1.37A48VDC |
| Power Type | Local Power |
| Quick-Connect Compatibility | No |
| TAA Compliant | Yes |
| UPC | 840077502348 |
| Certifications | CEFCCTAAUL Listed |
| Warranty | 3 years |
Resources
You'll need these with it
Questions about this part
What cameras is the 999-9630-000 compatible with?
This bridge is specifically packaged for Sony SRG and Panasonic HE series cameras to ensure native OneLINK compatibility.
How far can I extend the camera signal with this kit?
You can achieve a 230 ft (70m) extension using Cat-5e cable, or extend the signal up to 328 ft (100m) when using Cat-6 cabling.
What video and audio outputs are available on the bridge?
The unit provides simultaneous outputs for 3G SDI, HDMI, and USB 3.0 Type B, along with audio connectivity.
Does this kit include the necessary control interfaces?
Yes, it features a built-in browser-based user interface and supports 3rd party control through RS232 and Telnet protocols.
What is the maximum resolution supported over USB?
The system supports up to 1080p/60 resolution via uncompressed USB connection.
