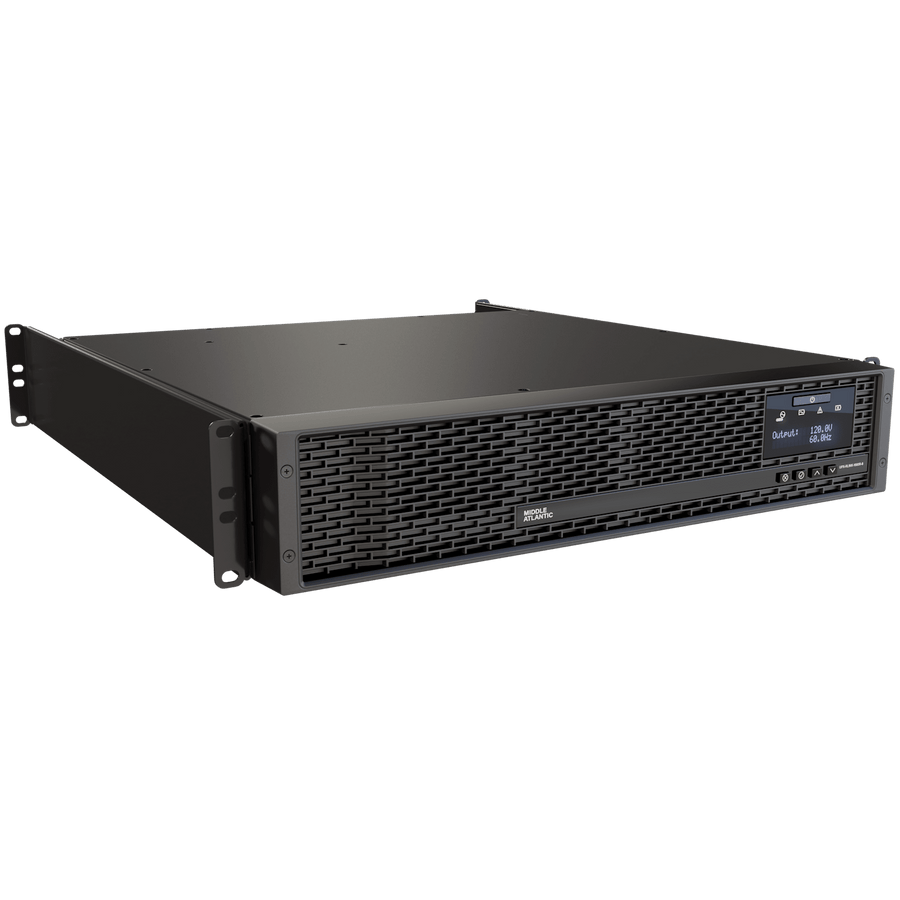

NEXSYS™ 1000VA, 15 Amp UPS Backup Power System with RackLink™, Individual Outlet Control
1000VA Line Interactive UPS with RackLink™ Cloud monitoring, 8 individually controlled outlets, and hot-swappable front-access battery.
The UPX-RLNK-1000R-8 is a NEXSYS™ 1000VA, 15 Amp UPS Backup Power System designed specifically for professional AV environments. This 2 RU line interactive system provides 900 W of power via 8 NEMA 5-15R outlets that feature individual outlet control, allowing for granular power management. Integrated RackLink™ technology enables remote monitoring and management through the RackLink™ Cloud dashboard, which is compatible with Control Concepts software including the UPS QSC® Q-SYS™ Plugin and Crestron® Module. This unit arrives with RackLink™ enabled out of the box, allowing for immediate discovery via the RackLink™ Discovery Tool on PC, Apple, or Android devices. For system longevity, the UPS features a hot-swappable battery accessible via the front panel, facilitating service without disrupting the powered equipment. The system includes a 6 ft (1.8 m) IEC power cord and is pre-configured with 4-post mounting brackets for rapid rack integration. Users can set specific power quality thresholds to trigger battery mode or receive email notifications for battery replacement requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 VAC |
| AC Voltage Output | 110-127 VAC |
| Amps | 15 Amp |
| Cord Length | 6 ft (1.8 m) |
| Depth | 16 in (40.6 cm) |
| Height | 3.46 in (8.8 cm) |
| Mounting Depth Max | 36 in (91.4 cm) |
| Mounting Depth Min | 22 in |
All other specifications 28
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 44.1 lbs (20 kg) |
| Rack Units | 2 RU |
| Shipping Weight | 52 lbs (23.6 kg) |
| VA Rating | 1000VA |
| Volts AC | 120 VAC |
| Volts DC | 36 VDC |
| Watts | 900 W |
| Width | 19 in (48.3 cm) |
| Color | Black |
| Control Type | RackLink |
| Federal Ops Country of Origin | China |
| Isolated Ground | No |
| Mounting Points | 4 |
| Network Card Included | Yes |
| Network Enabled | Yes |
| Outlet Control Type | Individual |
| Outlet Count | 8 |
| Plug Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Special Features | NEXSYS UPS |
| Surge Protection Type | MOV |
| TAA Compliant | No |
| Topology | Line Interactive |
| UPC | 656747395635 |
| Certifications | CSAFCCREACHRoHSTUV |
| Patents | www.legrandav.com/patents |
| Warranty | 2 Years Battery3 years |
Resources
You'll need these with it
NEXSYS™ UPS Temperature and Humidity Sensor
UPX-TEMP-CONT$522.00
NEXSYS UPS Replacement Battery - UPX-RPLBATT-A
UPX-RPLBATT-ANot stocked
NEXSYS™ UPS Expandable Run Time Unit For 1000 and 1500VA UPS Units
UPX-EXPANRUN-10-15$1,764.00
Questions about this part
Will the UPX-RLNK-1000R-8 work with my Crestron or Q-SYS system?
Yes, this unit is compatible with the UPS Crestron® Module and the UPS QSC® Q-SYS™ Plugin, provided the NEXSYS RackLink Network Card is running firmware v1.10.08 or later.
How can I monitor the power status of this UPS remotely?
The UPX-RLNK-1000R-8 is RackLink™ enabled out of the box. You can manage and monitor the unit via the RackLink™ Cloud dashboard using a PC, Apple, or Android device.
Can I replace the battery without turning off my equipment?
Yes, the UPS features a hot-swappable battery accessible through a front access panel, allowing you to perform maintenance without disrupting your system.
What extra accessories are needed to extend the runtime?
You can increase runtime by adding the NEXSYS™ UPS Expandable Run Time Unit (UPX-EXPANRUN-10-15) to this 1000VA unit.
What tools are required for the installation of this unit?
The unit comes with 4-post mounting brackets pre-installed and includes a 6 ft (1.8 m) IEC power cord for setup.
