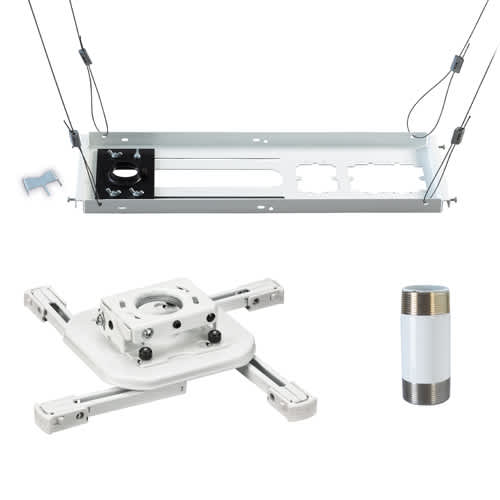

Mini Universal RPA Projector Kit (RSAUW, CMS440, CMS003W)
White projector kit for suspended ceilings, supports 25 lbs capacity with independent roll-pitch-yaw adjustability
The KITAS003W is a preconfigured Universal Projector Kit designed for suspended ceiling installations. This white-finish kit is intended to simplify the ordering and installation process for professionals by grouping essential components into a single solution. The kit includes one RSAUW, one CMS003W, and one CMS440. It is designed for above-tile installation, utilizing a fixed 3 in (7.6 cm) column to position the projector below the ceiling grid. This specific configuration is engineered to accommodate 2' x 2' (60.33 x 60.33 cm) or 2' x 4' (60.33 x 121.92 cm) ceiling tiles. The mounting system provides independent roll, pitch, and yaw adjustability to ensure precise image alignment once the projector is mounted. With a total weight capacity of 25 lbs (11.3 kg), this kit provides a stable solution for smaller, lightweight projectors in professional environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm)2' x 4' (60.33 x 121.92 cm) |
| Column Length | 3 in (7.6 cm) |
| Shipping Dimensions | 28" x 12.5" x 6.5"(711.2 x 317.5 x 165.1 mm) |
| Shipping Weight | 14.67 lbs (6.7 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | White |
All other specifications 8
| Column Color | White |
| Column Type | Fixed |
| Installation Type | Above Tile |
| Keyed Locking | No |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | No |
| UPC | 841872154664 |
Resources
Questions about this part
Will this projector kit work in a suspended ceiling?
Yes, this kit is designed for above-tile installation in suspended ceilings using either 2' x 2' or 2' x 4' ceiling tiles.
What components are included in the KITAS003W kit?
This kit is preconfigured with one RSAUW, one CMS003W, and one CMS440 component.
How much weight can I mount with this kit?
The KITAS003W has a maximum weight capacity of 25 lbs (11.3 kg).
Does this kit allow for image alignment adjustments?
Yes, the system provides independent roll, pitch, and yaw adjustability to facilitate accurate projector positioning.
Which documents are available for submittals?
Installers can access the RPA Installation Manual, CMS440 Installation Manual, or CMS Series Extension Columns Installation Manual for technical details.
