Mini Universal RPA Projector Kit (RSAU, CMA455, CMS003)
Universal projector kit for 2' x 2' suspended ceilings, supporting 25 lbs with independent roll, pitch, and yaw adjustability

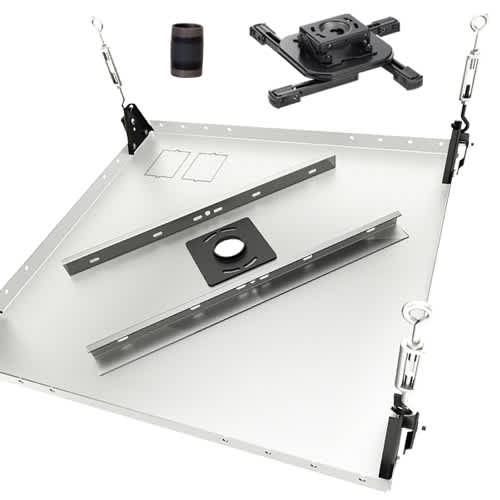

The Chief KITAB003 is a preconfigured Mini Universal RPA Projector Kit designed to simplify the ordering and installation process for suspended ceiling environments. This kit is specifically built for 2' x 2' (60.33 x 60.33 cm) ceiling tiles and is intended for both above-tile and replacement installation types. The assembly includes three essential components: one RSAU, one CMA455, and one CMS003 fixed-length column. The integrated 3 in (7.6 cm) black column provides a stable foundation for the mount, which has a total weight capacity of 25 lbs (11.3 kg). To ensure precise projector alignment, the kit features independent roll, pitch, and yaw adjustability. This solution is finished in black and is part of the Universal Projector Kits For Suspended Ceiling series, providing a streamlined approach for integrators working with standard commercial ceiling grids.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm) |
| Column Length | 3 in (7.6 cm) |
| Shipping Dimensions | 30" x 30" x 8" (762 x 762 x 203.2 mm) |
| Shipping Weight | 30.41 lbs (13.8 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-Yaw |
| Application | Ceiling |
| Color | Black |
All other specifications 8
| Column Color | Black |
| Column Type | Fixed |
| Installation Type | Above Tile and Replacement |
| Keyed Locking | No |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | No |
| UPC | 841872154626 |
Resources
Questions about this part
What is included in the Chief KITAB003 kit?
This preconfigured kit contains one RSAU, one CMA455, and one CMS003 fixed-length column.
Can I use this kit with a 2' x 2' ceiling grid?
Yes, this kit is designed for 2' x 2' (60.33 x 60.33 cm) ceiling tiles and supports both above-tile and replacement installation.
How much weight can this projector mount support?
The KITAB003 has a maximum weight capacity of 25 lbs (11.3 kg).
How do I adjust the projector position after installation?
The mount provides independent roll, pitch, and yaw adjustability to facilitate precise projector positioning.
Which documents are available for the KITAB003 submittal?
You can access the RSAU, CMS003, and RPA technical drawings as well as installation manuals for the CMS series and RPA.
