Mini Elite Universal Projector Kit (RSMAUW, CMSZ006S, CMS440)
Universal white projector kit for suspended ceilings, featuring an RSMAUW mount and 25 lbs weight capacity

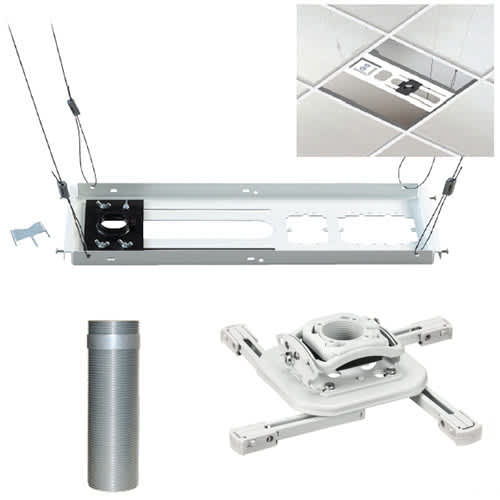

The Chief KITMZ006W is a preconfigured universal projector kit designed for suspended ceiling installations. This kit streamlines the ordering process by bundling the RSMAUW Universal Projector Mount with a CMSZ006S 6" (152 mm) fully threaded extension column and the CMS440 Lightweight Suspended Ceiling Kit. Finished in white, this solution is designed for above-tile installation in environments using 2' x 2' (60.33 x 60.33 cm) or 2' x 4' (60.33 x 121.92 cm) ceiling tiles. The system supports a weight capacity of 25 lbs (11.3 kg) and provides critical micro-adjustable movement. Installers can achieve precise alignment through independent roll, pitch, and yaw adjustments to ensure the projection is perfectly centered. This kit is an efficient way to handle most lightweight projector installations within a single package, providing a coordinated white aesthetic for professional environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm)2' x 4' (60.33 x 121.92 cm) |
| Column Length | 0" - 6" (0 cm - 15cm) |
| Shipping Dimensions | 25.25" x 12.25" x 6.25"(641.4 x 311.2 x 158.8 mm) |
| Shipping Weight | 15.87 lbs (7.2 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | White |
All other specifications 8
| Column Color | White |
| Column Type | Fully Threaded |
| Installation Type | Above Tile |
| Keyed Locking | Yes |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | No |
| UPC | 841872159355 |
Resources
Questions about this part
Will this kit fit my 2x2 or 2x4 ceiling grid?
Yes, the CMS440 kit is designed for above-tile installation in both 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tile sizes.
What is the weight limit for the KITMZ006W?
This kit has a maximum weight capacity of 25 lbs (11.3 kg) for the projector and accessories.
How do I adjust the projector once it is mounted?
The RSMAUW mount provides micro-adjustment capabilities, allowing for independent roll, pitch, and yaw to correct the image angle.
What components are included in the KITMZ006W package?
The package contains one RSMAUW Universal Projector Mount, one CMSZ006S 6" (152 mm) fully threaded extension column, and one CMS440 Lightweight Suspended Ceiling Kit.
Is there a way to secure the mount against unauthorized movement?
Yes, this kit includes a keyed locking feature to secure the installation.
