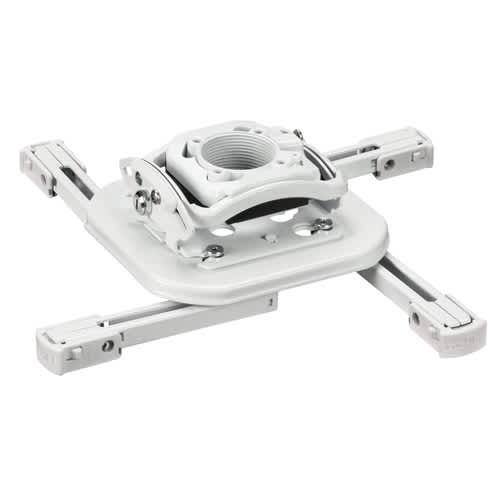

Mini Elite Universal Projector Kit (RSMAUW, CMS003W, CMS440)
Universal projector ceiling kit for suspended ceilings, featuring a 3 in (7.6 cm) column and 25 lbs (11.3 kg) capacity
The Chief KITMS003W is a preconfigured projector mounting kit designed to simplify the ordering and installation process for suspended ceiling environments. This white-finish solution is built for professional installers requiring a coordinated assembly, containing one RSMAUW Universal Projector Mount, one CMS003W 3 in (7.6 cm) extension column, and one CMS440 Lightweight Suspended Ceiling Kit. The kit is engineered for above-tile installation in spaces utilizing 2' x 2' (60.33 x 60.33 cm) or 2' x 4' (60.33 x 121.92 cm) ceiling tiles. With a weight capacity of 25 lbs (11.3 kg), the system provides micro-adjustable independent roll, pitch, and yaw to ensure precise image alignment. For added security in public spaces, this kit features integrated keyed locking. This universal solution allows for a streamlined deployment when mounting lightweight projectors from a suspended grid.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm)2' x 4' (60.33 x 121.92 cm) |
| Column Length | 3 in (7.6 cm) |
| Shipping Dimensions | 28" x 12.25" x 6.50"(711.2 x 311.2 x 165.1 mm) |
| Shipping Weight | 14.45 lbs (6.6 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | White |
All other specifications 8
| Column Color | White |
| Column Type | Fixed |
| Installation Type | Above Tile |
| Keyed Locking | Yes |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | No |
| UPC | 841872144900 |
Resources
Questions about this part
Will this kit work in a suspended ceiling with 2x4 tiles?
Yes, this kit is designed for above-tile installation in both 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tile configurations.
What is the weight capacity for the KITMS003W?
The KITMS003W has a maximum weight capacity of 25 lbs (11.3 kg).
How much adjustment can I make for projector alignment?
The RSMAUW mount provides micro-adjustable independent control over roll, pitch, and yaw to facilitate exact image positioning.
What components are included in this preconfigured kit?
This kit contains the RSMAUW Universal Projector Mount, the CMS003W 3 in (7.6 cm) extension column, and the CMS440 Lightweight Suspended Ceiling Kit.
Does this projector mount include security features?
Yes, this kit includes keyed locking to secure the installation.
