Mini Elite Universal Projector Kit (RSMAUS, CMZ006S, CMS440)
Universal projector kit for suspended ceilings, featuring a 6 in (152 mm) extension column and 25 lbs capacity

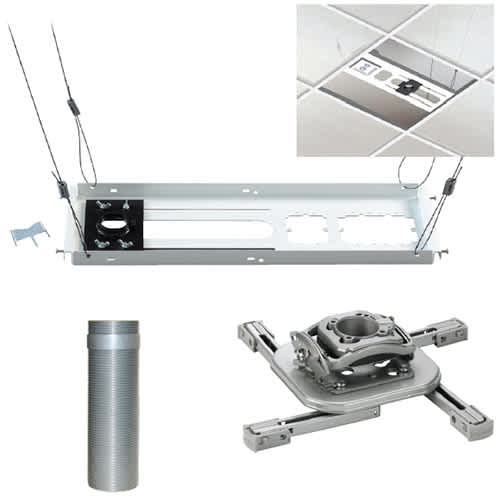

The KITMZ006S is a preconfigured solution designed to simplify the ordering and installation process for suspended ceiling projector mounts. This Universal Projector Kit for Suspended Ceiling series includes the RSMAUS Universal Projector Mount, a CMSZ006S 6 in (152 mm) fully threaded extension column, and the CMS440 Lightweight Suspended Ceiling Kit. This combination provides a complete package to support most suspended ceiling installations. The system is designed for installation above the tile and supports a weight capacity of 25 lbs (11.3 kg). To facilitate precise positioning of the projector, the mount provides micro-adjustable, independent roll-pitch-yaw capability. The assembly features a silver finish on both the mount and the column. For security and stability, the kit includes keyed locking features. This kit is specifically engineered to work within 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tile configurations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm)2' x 4' (60.33 x 121.92 cm) |
| Column Length | 6 in (15.2 cm) |
| Shipping Dimensions | 25.25" x 12.25" x 6.25"(641.4 x 311.2 x 158.8 mm) |
| Shipping Weight | 15.87 lbs (7.2 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | Silver |
All other specifications 8
| Column Color | Silver |
| Column Type | Fully Threaded |
| Installation Type | Above Tile |
| Keyed Locking | Yes |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | No |
| UPC | 841872159348 |
Resources
Questions about this part
What is included in the KITMZ006S projector kit?
This kit contains the RSMAUS Universal Projector Mount, the CMSZ006S 6 in (152 mm) fully threaded extension column, and the CMS440 Lightweight Suspended Ceiling Kit.
Will this kit work with my suspended ceiling tile size?
Yes, this kit is designed to support installations within 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tiles.
How much weight can this projector mount support?
The KITMZ006S has a weight capacity of 25 lbs (11.3 kg).
Can I adjust the projector angle once it is mounted?
The mount features micro-adjustable, independent roll-pitch-yaw to allow for precise leveling and positioning.
Does this projector mount include security features?
Yes, the KITMZ006S includes keyed locking to secure the installation.
