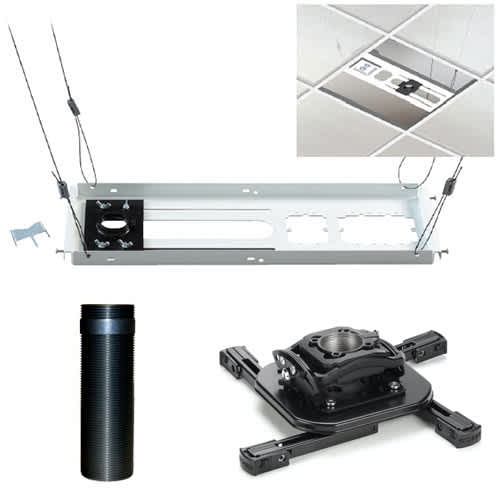

Mini Elite Universal Projector Kit (RSMAU, CMSZ006, CMS440)
Universal projector kit for suspended ceilings, featuring a 25 lb capacity and micro-adjustable pitch, roll, and yaw.
The Chief KITMZ006 simplifies professional audiovisual installations by providing a preconfigured solution specifically for suspended ceiling environments. This universal kit includes the RSMAU Universal Projector Mount, the CMSZ006 6" (152 mm) fully threaded extension column, and the CMS440 Lightweight Suspended Ceiling Kit. Designed for above-tile installation, this system is engineered to support most suspended ceiling configurations, including those utilizing 2' x 2' (60.33 x 60.33 cm) or 2' x 4' (60.13 x 121.92 cm) ceiling tiles. The kit supports a weight capacity of 25 lbs (11.3 kg). For precise image alignment, the mount provides micro-adjustable, independent roll, pitch, and yaw capabilities. The assembly features a black finish for the mount and a silver finish for the fully threaded column, ensuring a professional appearance in any commercial or educational space.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm)2' x 4' (60.33 x 121.92 cm) |
| Column Length | 0" - 6" (0 cm - 15cm) |
| Shipping Dimensions | 25.25" x 12.25" x 6.25"(641.4 x 311.2 x 158.8 mm) |
| Shipping Weight | 15.87 lbs (7.2 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | Black |
All other specifications 8
| Column Color | Silver |
| Column Type | Fully Threaded |
| Installation Type | Above Tile |
| Keyed Locking | Yes |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | No |
| UPC | 841872159331 |
Resources
Questions about this part
Will the KITMZ006 work with my suspended ceiling?
Yes, this kit is designed for above-tile installations and is compatible with both 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tiles.
What is the maximum weight capacity of this projector kit?
The KITMZ006 is rated for a weight capacity of 25 lbs (11.3 kg).
What components are included in this preconfigured kit?
This package contains one RSMAU Universal Projector Mount, one CMSZ006 6" (152 mm) fully threaded extension column, and one CMS440 Lightweight Suspended Ceiling Kit.
Can I adjust the projector's angle once it is installed?
Yes. The mount features micro-adjustable, independent roll, pitch, and yaw to allow for precise image positioning after installation.
Does this kit include security features?
Yes, this kit features keyed locking to secure the installation.
