Mini Elite Universal Projector Kit (RSMAU, CMS012018, CMS115)
Universal projector ceiling mount kit featuring an adjustable 12" - 18" column and micro-adjustable positioning

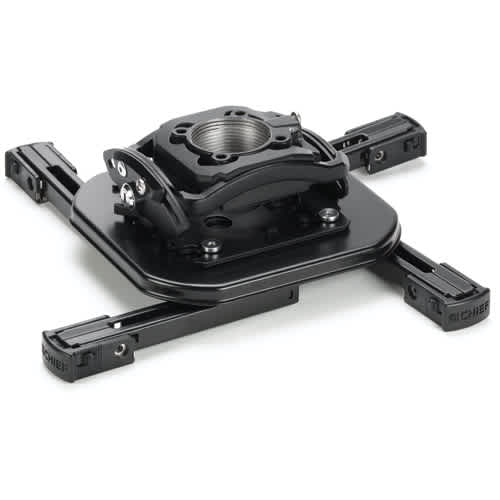

The Chief KITMD012018 is a preconfigured Universal Mini Elite Projector Kit designed to streamline the ordering and installation process for professional integrators. This solution includes an RSMAU universal mount, a CMS012018 adjustable column, and a CMS115 flat ceiling plate. The kit is engineered for ceiling applications, utilizing a black finish for all components, including the ceiling plate and the adjustable column. The included column offers a height range of 12" - 18" (30.5cm - 45.7cm) to accommodate varying installation depths. For precise alignment, the mount provides micro-adjustable positioning through independent roll-pitch-yaw movement. This TAA compliant assembly is built to support equipment with a weight capacity of 25 lbs (11.3 kg). Because this is a preconfigured kit, it provides a coordinated set of Chief components intended to simplify the procurement of projector mounting hardware.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Column Length | 12" - 18" (30.5cm - 45.7cm) |
| Shipping Dimensions | 20" x 14.25" x 6.5"(508 x 362 x 165.1 mm) |
| Shipping Weight | 11.45 lbs (5.2 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Ceiling Plate Type | Flat |
| Color | Black |
All other specifications 8
| Column Color | Black |
| Column Type | Adjustable |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | Yes |
| UPC | 841872144818 |
| Ceiling Plate Color | Black |
| Certifications | TAA |
Questions about this part
What is included in the Chief KITMD012018 projector kit?
This kit is preconfigured and contains one RSMAU mount, one CMS012018 column, and one CMS115 ceiling plate.
How much weight can the KITMD012018 support?
The kit is rated for a total weight capacity of 25 lbs (11.3 kg).
Can I adjust the projector position after it is mounted?
Yes, the kit features micro-adjustable capabilities with independent roll, pitch, and yaw for precise alignment.
What is the column height range for this kit?
The CMS012018 column provides an adjustable length between 12" - 18" (30.5cm - 45.7cm).
Is this projector kit TAA compliant?
Yes, the KITMD012018 is TAA compliant.
