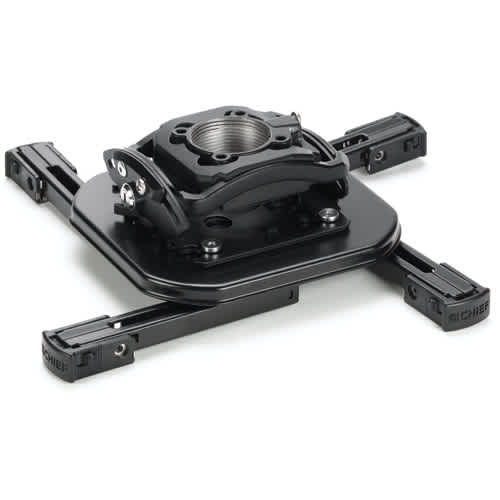

Mini Elite Universal Projector Kit (RSMAU, CMS009, CMS440)
Universal projector kit for suspended ceilings with a 9 in (22.9 cm) column and 25 lbs (11.3 kg) capacity
The Chief KITMS009 is a preconfigured solution designed to simplify the ordering and installation process for suspended ceiling environments. This universal kit is specifically assembled to include three essential components: the RSMAU, the CMS009, and the CMS440. Designed for above-tile installation, this kit is built to work with standard 2' x 2' (60.33 x 60.33 cm) or 2' x 4' (60.33 x 121.92 cm) ceiling tiles. The assembly features a fixed 9 in (22.9 cm) black column that provides stable support for the projector. To ensure precise placement after installation, the kit offers micro-adjustable, independent roll, pitch, and yaw to achieve the correct image projection. For added security in professional installations, this kit includes keyed locking to prevent unauthorized tampering or movement. With a weight capacity of 25 lbs (11.3 kg), this kit provides a streamlined, reliable mounting solution for standard professional projectors.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm)2' x 4' (60.33 x 121.92 cm) |
| Column Length | 9 in (22.9 cm) |
| Shipping Dimensions | 28" x 12.75" x 6.5"(711.2 x 323.9 x 165.1 mm) |
| Shipping Weight | 14.65 lbs (6.7 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | Black |
All other specifications 8
| Column Color | Black |
| Column Type | Fixed |
| Installation Type | Above Tile |
| Keyed Locking | Yes |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | No |
| UPC | 841872146867 |
Resources
Questions about this part
What is included in the Chief KITMS009 projector kit?
This preconfigured kit includes one RSMAU, one CMS009, and one CMS440 component.
What is the maximum weight capacity for this mount?
The KITMS009 is rated for a weight capacity of 25 lbs (11.3 kg).
Will this mount work with my suspended ceiling tiles?
Yes, it is designed for installation above tile in 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling layouts.
How much adjustment is possible for image alignment?
The kit features micro-adjustable independent roll, pitch, and yaw to help you finalize the projector's orientation.
Is the column length adjustable in this kit?
No, this specific kit uses a fixed 9 in (22.9 cm) column.
