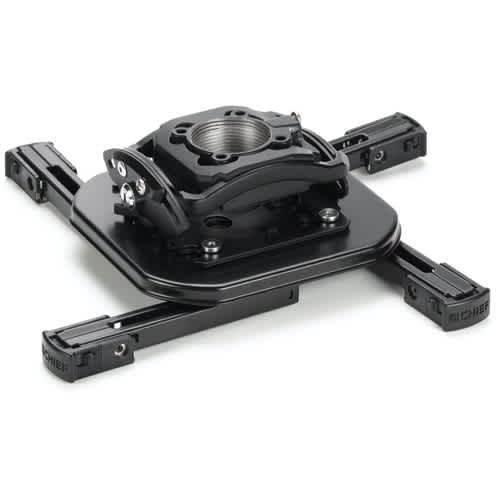

Mini Elite Universal Projector Kit (RSMAU, CMS006, CMS440)
Preconfigured projector kit for suspended ceilings with 25 lbs capacity and micro-adjustable roll, pitch, and yaw
The Chief KITMS006 is a preconfigured Universal Projector Kit designed specifically for suspended ceiling installations. This kit simplifies the procurement and installation process by grouping essential components into a single SKU, including the RSMAU, CMS006, and CMS440. Engineered for above-tile applications, it is compatible with 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tiles. The assembly features a 6 in (15.2 cm) fixed black column and provides micro-adjustable, independent roll-pitch-yaw movement to ensure precise projector positioning. This system supports a total weight capacity of 25 lbs (11.3 kg). For security in professional environments, the kit includes keyed locking to prevent unauthorized movement or tampering of the projector mounting assembly.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Ceiling Tile Size | 2' x 2' (60.33 x 60.33 cm)2' x 4' (60.33 x 121.92 cm) |
| Column Length | 6 in (15.2 cm) |
| Shipping Dimensions | 12.5" x 6.5" x 28"(317.5 x 165.1 x 711.2 mm) |
| Shipping Weight | 14.35 lbs (6.5 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Adjustability | Independent Roll-Pitch-YawMicro-Adjustable |
| Application | Ceiling |
| Color | Black |
All other specifications 8
| Column Color | Black |
| Column Type | Fixed |
| Installation Type | Above Tile |
| Keyed Locking | Yes |
| Solution Type | Universal |
| Special Features | Kits |
| TAA Compliant | No |
| UPC | 841872146287 |
Resources
Questions about this part
What components are included in the KITMS006 kit?
This preconfigured kit includes one RSMAU, one CMS006, and one CMS440 component.
Can I use this with a 2' x 2' ceiling tile?
Yes, this kit is designed for above-tile installation in both 2' x 2' (60.33 x 60.33 cm) and 2' x 4' (60.33 x 121.92 cm) ceiling tile configurations.
How much weight can the KITMS006 support?
The kit has a total weight capacity of 25 lbs (11.3 kg).
Does this projector mount allow for fine-tuning the image?
Yes, it features micro-adjustable independent roll, pitch, and yaw to allow for precise image alignment.
Is there a way to secure the projector once it is mounted?
The kit features keyed locking to secure the assembly in place.
