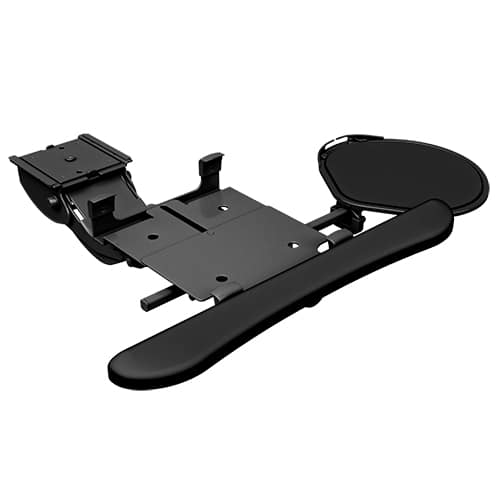

Mini Arm, Keyboard Clamp and Tilt/Swivel Mouse Tray
Mini keyboard arm with clamp tray for ergonomic seated typing, featuring 8" total height adjustment and 360° swivel
The Chief KBD-MINI-19C is an ergonomic keyboard and mouse solution optimized for seated desk environments. This mini arm allows for precise height adjustment to accommodate a user's natural typing position, reaching 3" (76 mm) above the worksurface and -5" (127 mm) below it. The system features a phenolic surface tray with a closed-channel design for maximum stability. For ease of use, the counterbalance design offsets the weight of the keyboard and mouse during movement, while a soft-touch wheel enables tilt adjustments between +10° and -20°. This TAA compliant assembly is constructed from rugged steel with a black textured powder coat and provides a slim profile to maximize knee clearance when retracted. The rear of the tray features a 360° swivel for optimal positioning and storage.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Manual Height Adjustment | -5″ (127 mm) below the worksurface8″ (203 mm) total height adjustment range: +3″ (76 mm) above |
| Shipping Weight | 21 lbs (9.5 kg) |
| Accessory Type | Laptop and Keyboard |
| Adjustability | ExtensionHeight AdjustableMicro-AdjustableSwivelTilt |
| Application | Desk-TabletopFurniture |
| Color | Black and Grey with Black Accents |
| Keyboard Arm Type | Mini Arm |
| Keyboard Tray Type | Keyboard Clamp |
All other specifications 5
| Material | Phenolic surface |
| TAA Compliant | Yes |
| Tilt | +10° / -20° |
| UPC | 841872172620 |
| Certifications | TAA |
Resources
Questions about this part
How much height adjustment does the KBD-MINI-19C provide?
The arm provides a total height adjustment range of 8" (203 mm), which allows the tray to sit 3" (76 mm) above or 5" (127 mm) below the worksurface.
Can I adjust the tilt on this keyboard tray?
Yes, the tray includes a soft-touch wheel for tilt adjustment, providing a range of +10° to -20°.
What is the mounting application for this keyboard arm?
This is a desk-tabletop and furniture application designed to hold a laptop or keyboard for seated ergonomic support.
Is this product TAA compliant?
Yes, the KBD-MINI-19C is TAA compliant.
How do I adjust the height without using levers?
The arm is designed so you can simply lift it to your desired height and release it without needing knobs, levers, or ratchet handles.
