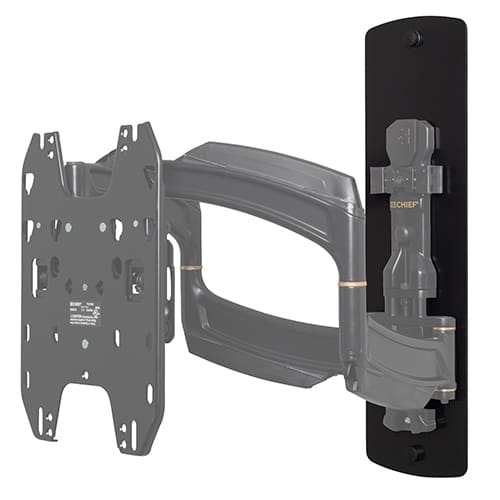

Medium Thinstall™ Metal Stud Accessory-TAMMSB
Metal stud accessory for mounting medium Thinstall swing arms to a single steel stud, supporting up to 50 lbs
The Chief TAMMSB is a medium Thinstall metal stud accessory designed to facilitate the installation of swing arms onto a single steel stud. This accessory is specifically engineered to enable the medium TS318SU single-stud Thinstall swing arm to be securely mounted when a traditional wood stud is unavailable. For a successful installation, this accessory requires a minimum drywall thickness of 1/2" and a 2"x4" 25ga minimum steel stud. It supports a total applied weight capacity of up to 50 lbs (22.6 kg), a figure that includes the weight of the mount itself. This TAA compliant component is finished in black to match standard dark hardware and is available in a white finish variant for different aesthetic requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 24" x 9.5" x 7"(609.6 x 241.3 x 177.8 mm) |
| Shipping Weight | 5 lbs (2.3 kg) |
| Weight Capacity | Up to 50lbs total applied weightincluding mount |
| Accessory Type | Metal Stud |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872171135 |
| Certifications | TAA |
Resources
Questions about this part
What do I need to mount a swing arm to a single steel stud?
You will need the TAMMSB accessory along with a medium TS318SU single-stud Thinstall swing arm.
What are the mounting requirements for the TAMMSB?
This accessory requires a minimum drywall thickness of 1/2" and a 2"x4" 25ga minimum steel stud for installation.
How much weight can this accessory support?
The TAMMSB has a total applied weight capacity of up to 50 lbs (22.6 kg), which includes the weight of the mount.
Is there a white version of this accessory?
Yes, while this SKU is the black finish, a white finish version is also available.
Which technical drawings are available for submittals?
You can access the TAMMS CAD Drawing (dwg), the TAMMS Technical Drawing (PDF), or the TAMMS TASMS Installation Manual (PDF) for project submittals.
