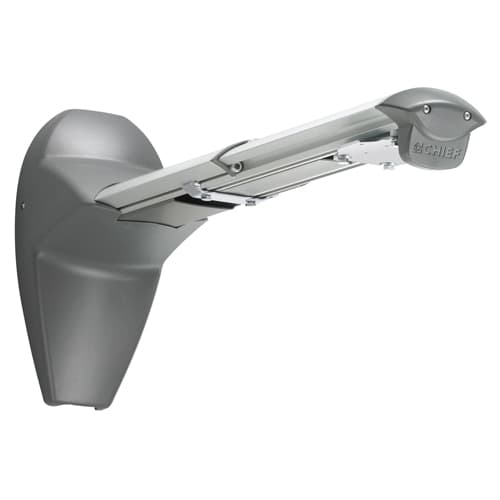

Medium Short Throw Wall Mount - WM120S
Medium short throw wall mount for single stud applications, providing 16" to 29" of extension for precise projector placement
The WM120S provides the necessary placement and alignment for mounting ultra short throw or short throw projectors on a single stud. This medium-length solution extends from the wall at a range of 16" - 29" (40.64cm - 73.66cm), making it suitable for various installation depths. This unit is designed to be used in conjunction with Chief projector mounts; it includes the short throw arm only, so you must order the projector mount separately. It is compatible with the RPA, RPA Elite, RPA Mini, and RPA Elite Mini Series mounts. For installers requiring high-precision image alignment, the WM120S supports micro roll, pitch, and yaw adjustments when paired with RPA Elite mounts. The system features an integrated cable management system to protect and conceal wiring for a professional finish. Security is maintained through All-Points locking hardware and support for four different keyed locking options (A/B/C/D). It is UL Listed and includes hardware for installation into wood studs, steel studs, or concrete walls. This unit can also be used for wall-mounted long-throw projectors.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 34.2 in (86.9 cm) |
| Extension | 16" - 29" (40.64cm - 73.66cm) |
| Height | 14.2 in (36.1 cm) |
| Overall Dimensions | 14.2" x 7.3" x 34.2" (360 x 185 x 869 mm) |
| Shipping Weight | 19.15 lbs (8.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 7.3 in (18.5 cm) |
| Adjustability | Fixed |
All other specifications 7
| Adjustments | Pitch: 3° |
| Application | Wall |
| Color | Silver |
| Solution Type | Universal |
| TAA Compliant | No |
| UPC | 841872122854 |
| Certifications | UL Listed |
Resources
Questions about this part
What projector mounts are compatible with the WM120S?
This arm is compatible with the RPA, RPA Elite, RPA Mini, and RPA Elite Mini Series projector mounts. Please note that the projector mount must be ordered separately as this SKU only includes the short throw arm.
Can I use the WM120S with long-throw projectors?
Yes, this mount also supports the installation of wall-mounted long-throw projectors.
What type of wall construction can I install this on?
The package includes the necessary hardware for installation into wood stud, steel stud, or concrete wall construction.
Does the WM120S allow for precise image alignment?
When used with RPA Elite mounts, you can achieve precision alignment using micro roll, pitch, and yaw adjustments.
What is the extension range for this mount?
The WM120S provides an extension from the wall of 16" - 29" (40.64cm - 73.66cm).
