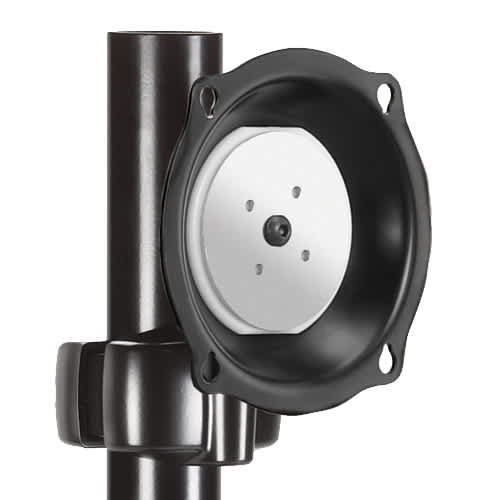

Medium Pivot/Tilt Pole Mount - JPPVB
Pole mount for 26" - 45" displays with tilt, swivel, and portrait/landscape orientation, 75 lbs capacity
The Chief JPPVB is a medium-sized pole mount designed to provide flexible positioning for a single flat panel display. This solution is built for 26" - 45" (660mm - 1143mm) screens with a weight capacity of 75 lbs (34 kg). Using Centris Technology, users can achieve smooth, fingertip tilt in any direction to manage glare or improve sightlines. The mount offers 15° of smooth swivel and allows for both portrait and landscape mounting orientations. It is designed to attach to poles with a diameter range of 1.5" - 2" (38mm - 51mm). For installers requiring precise alignment after setup, the mount includes a post-installation leveling roll. This TAA compliant mounting solution supports a variety of VESA mounting patterns including 100 x 100mm, 200 x 100mm, 200 x 200mm, and 400 x 200mm. If a display is not VESA compatible, an MSB interface bracket can be purchased separately to enable mounting.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Pole Diameter Range | 1.5" - 2" (38mm - 51mm) |
| Shipping Dimensions | 19.5" x 10.5" x 3.5"(495.3 x 266.7 x 88.9 mm) |
| Shipping Weight | 8.95 lbs (4.1 kg) |
| Typical Screen Size | 26" - 45" (660mm - 1143mm) |
| Weight Capacity | 75 lbs (34 kg) |
| Adjustability | SwivelTilt |
| Application | Pole |
| Color | Black |
All other specifications 8
| Number of Displays | 1 |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| TAA Compliant | Yes |
| UPC | 841872108346 |
| VESA Mounting Pattern | 100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 200mm |
| Certifications | TAA |
Resources
Verified fitment
Questions about this part
Will this JPPVB mount fit my display?
The JPPVB is verified against 4,564 display models from 178 manufacturers, including LG 26CS460T, Samsung 245B, Sony BVMF250A, Philips 240BW8EB, and Panasonic BTLH2550.
What pole diameter is required for the JPPVB?
This mount is designed for use with poles that have a diameter range of 1.5" - 2" (38mm - 51mm).
Can I mount my display in portrait orientation?
Yes, the JPPVB supports both landscape and portrait mounting orientations for versatile installation.
How much weight can the JPPVB support?
The JPPVB has a maximum weight capacity of 75 lbs (34 kg) for a single display.
What if my display does not have VESA mounting holes?
For non-VESA compatible screens, you can purchase an MSB interface bracket separately to allow for mounting.
